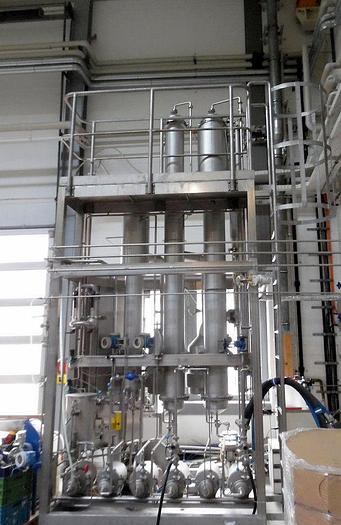

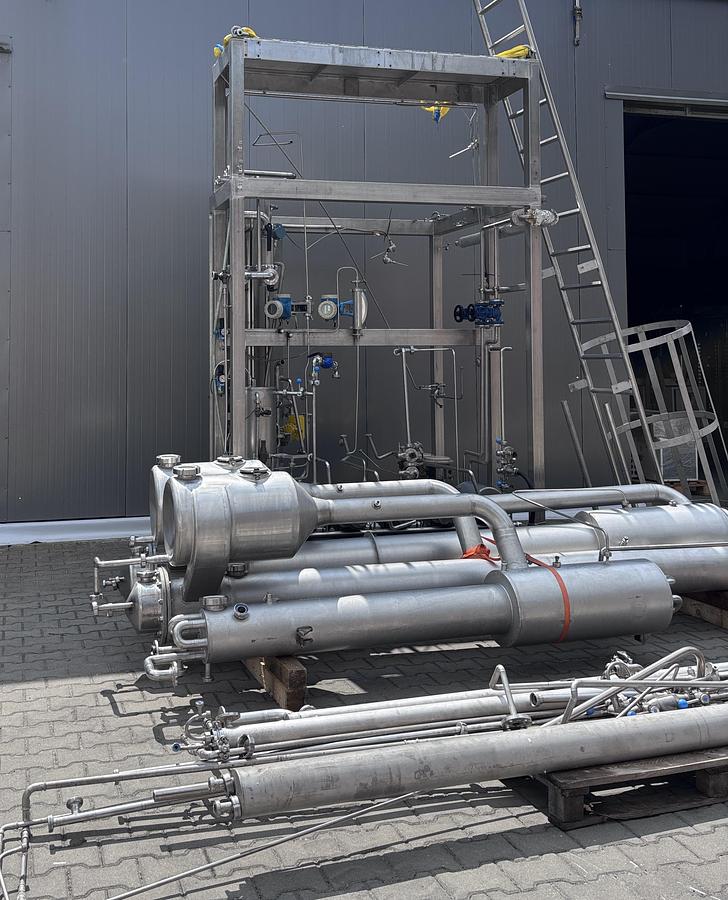

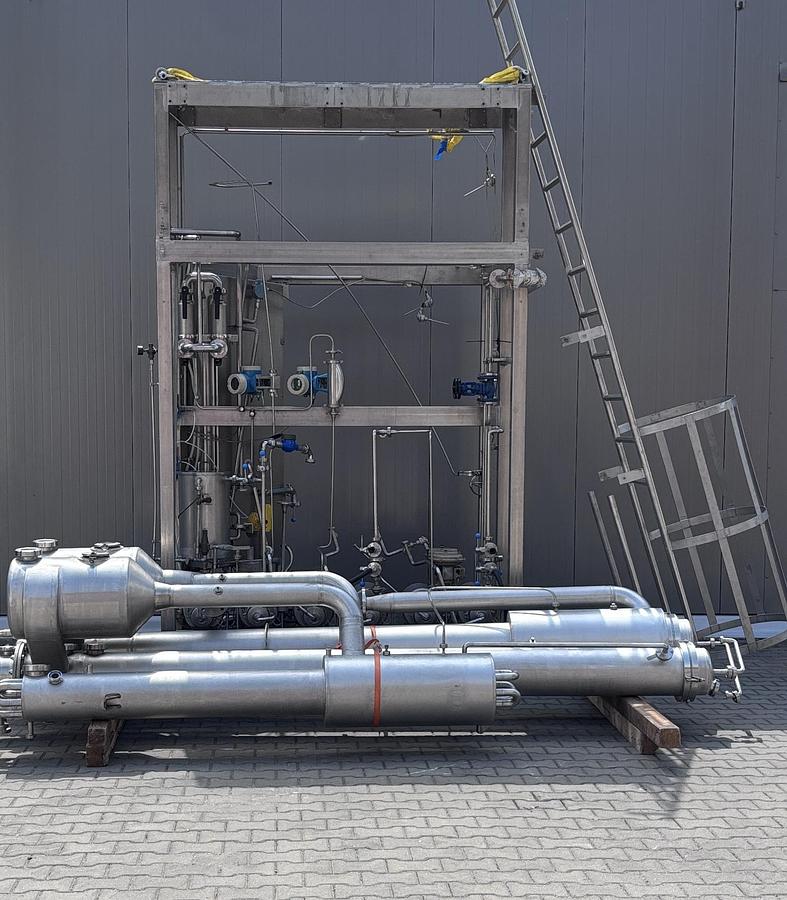

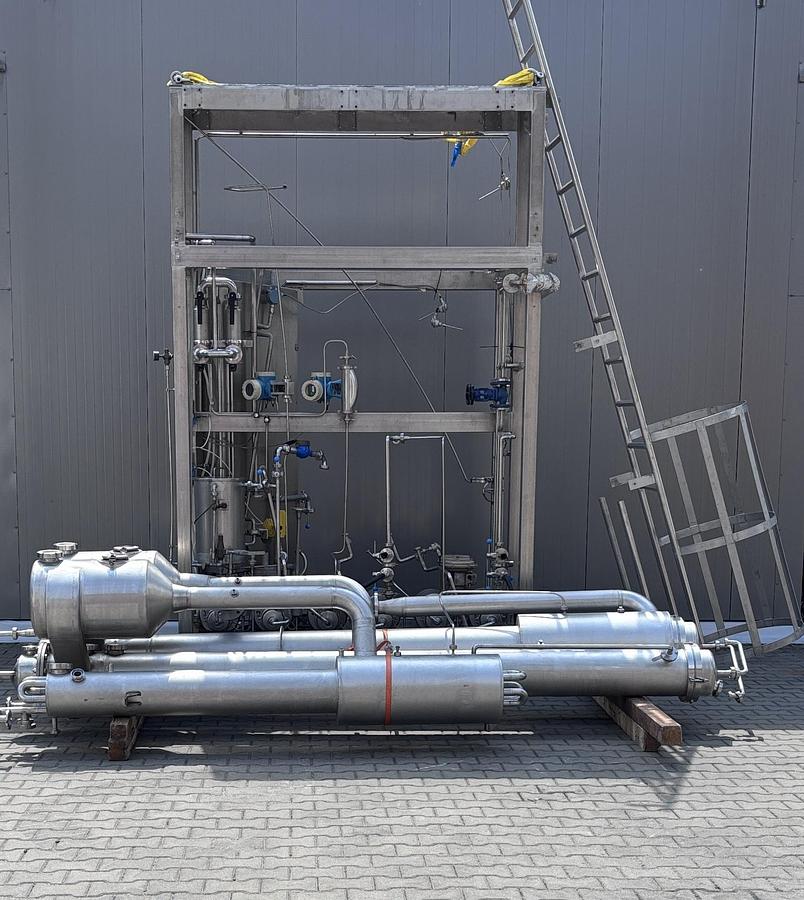

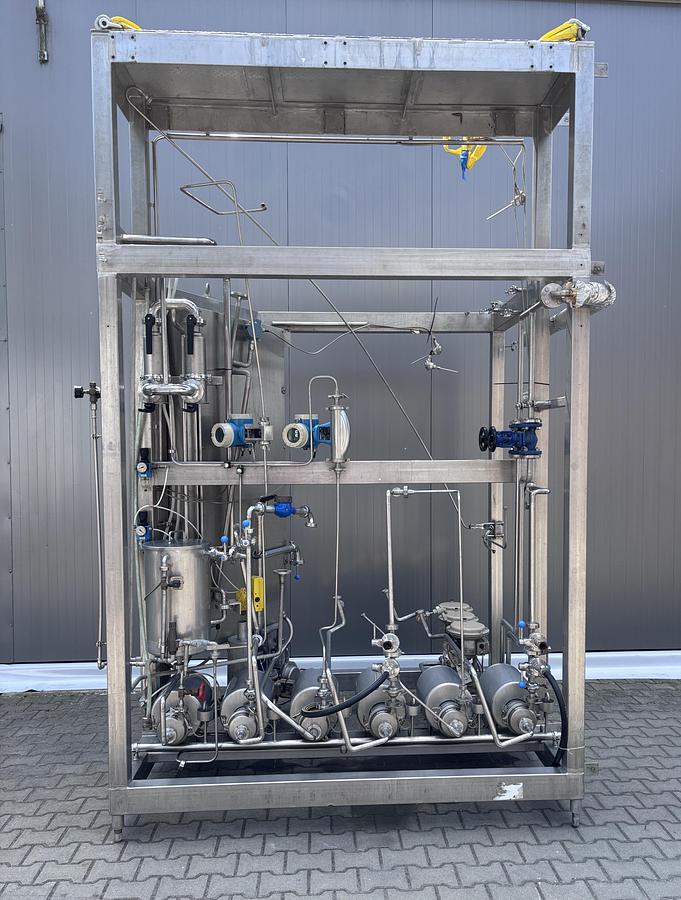

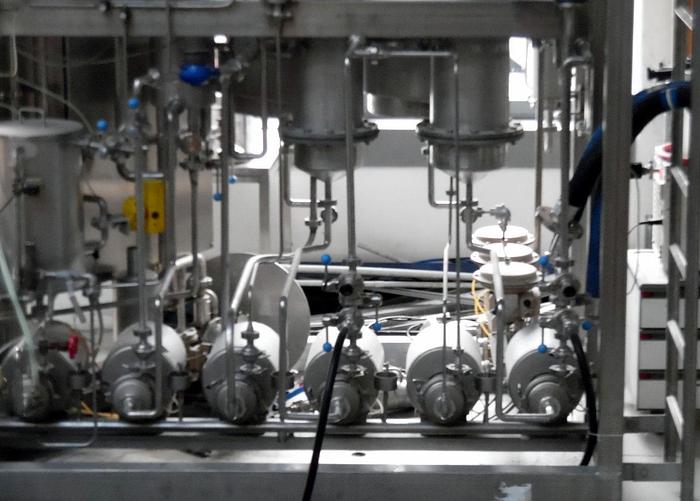

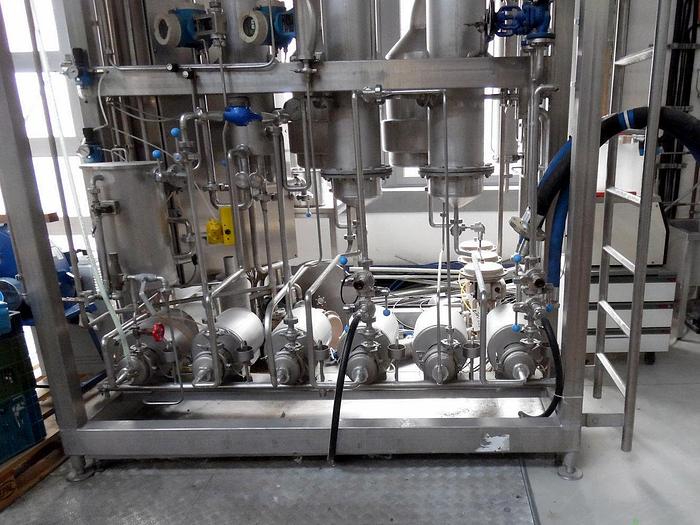

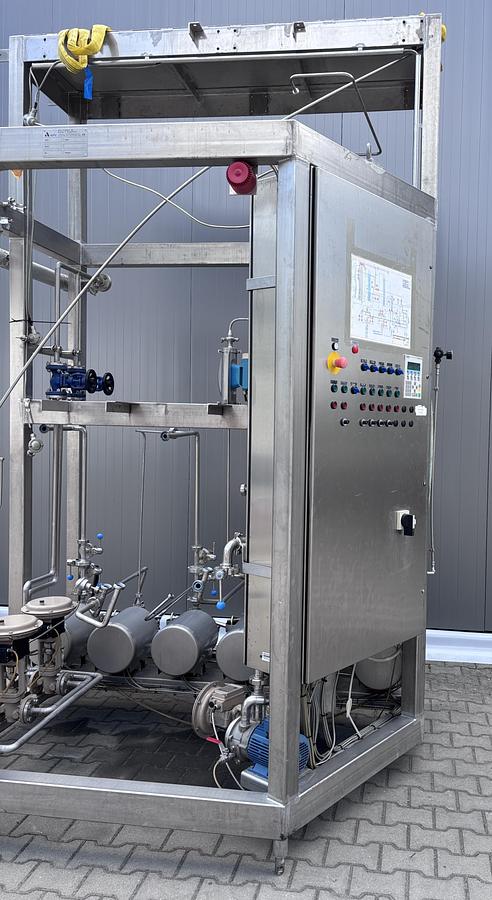

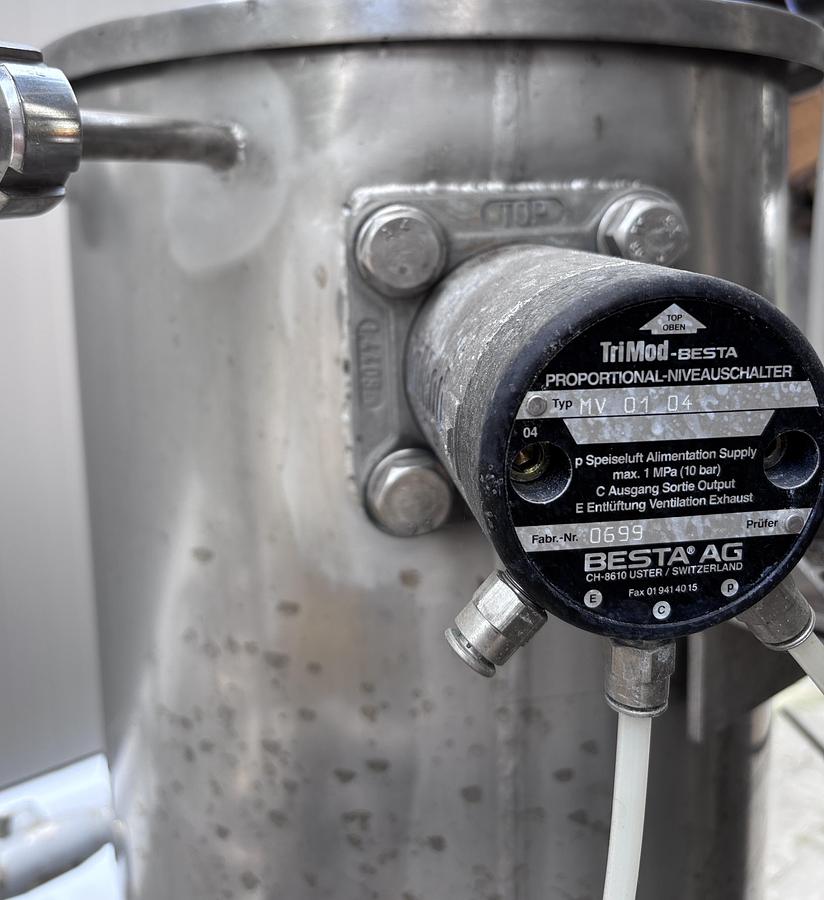

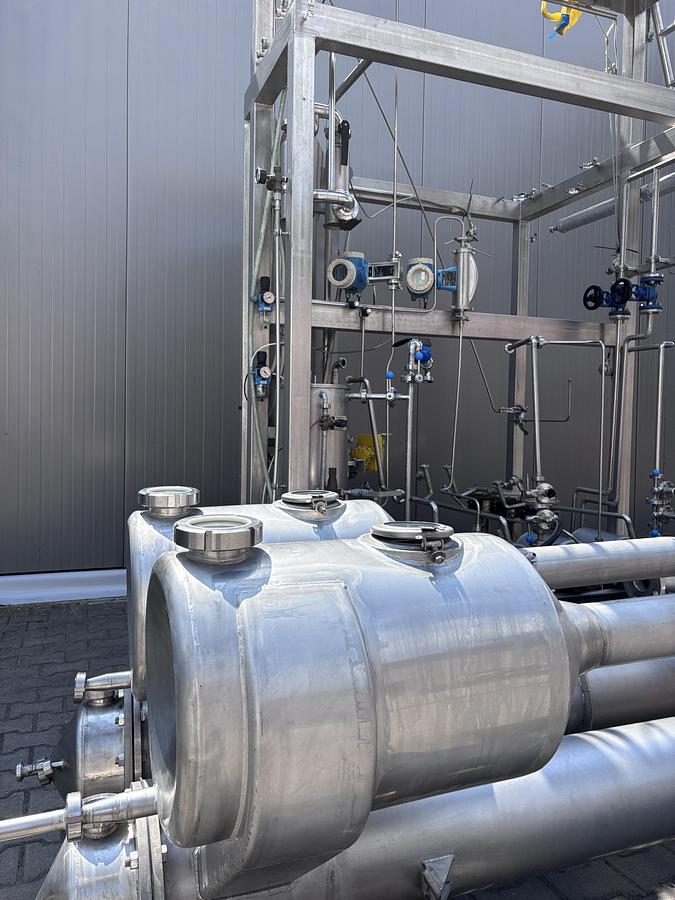

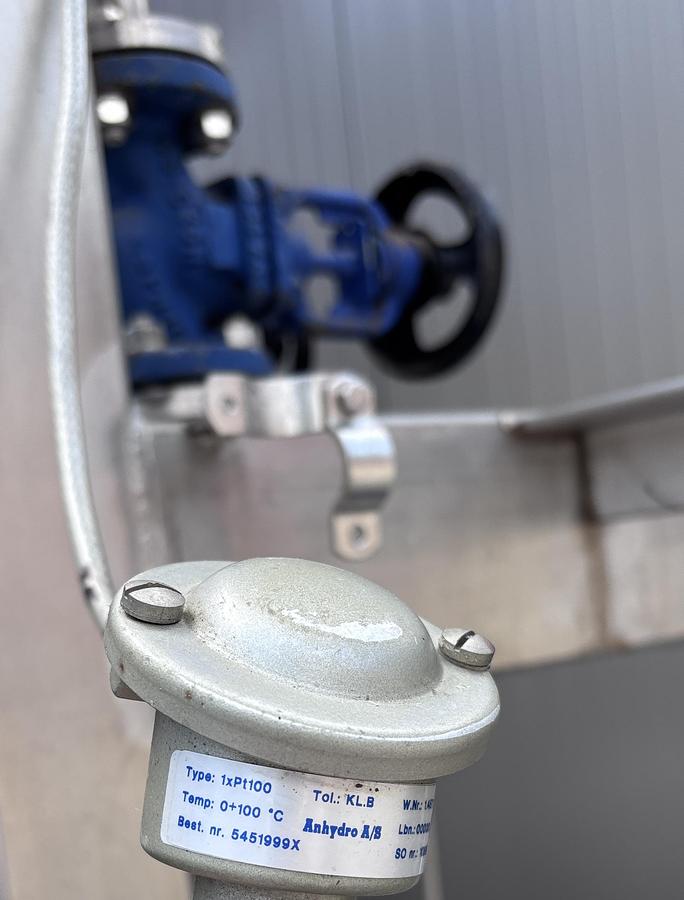

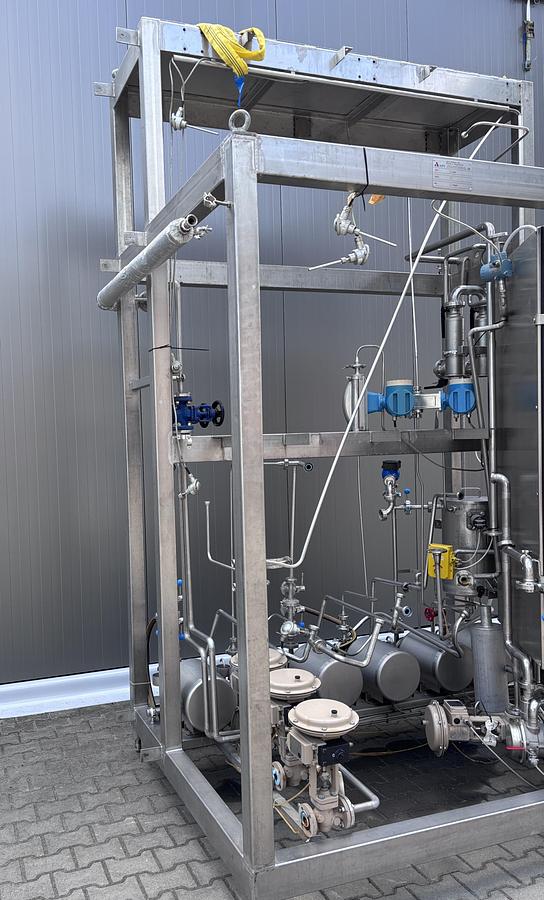

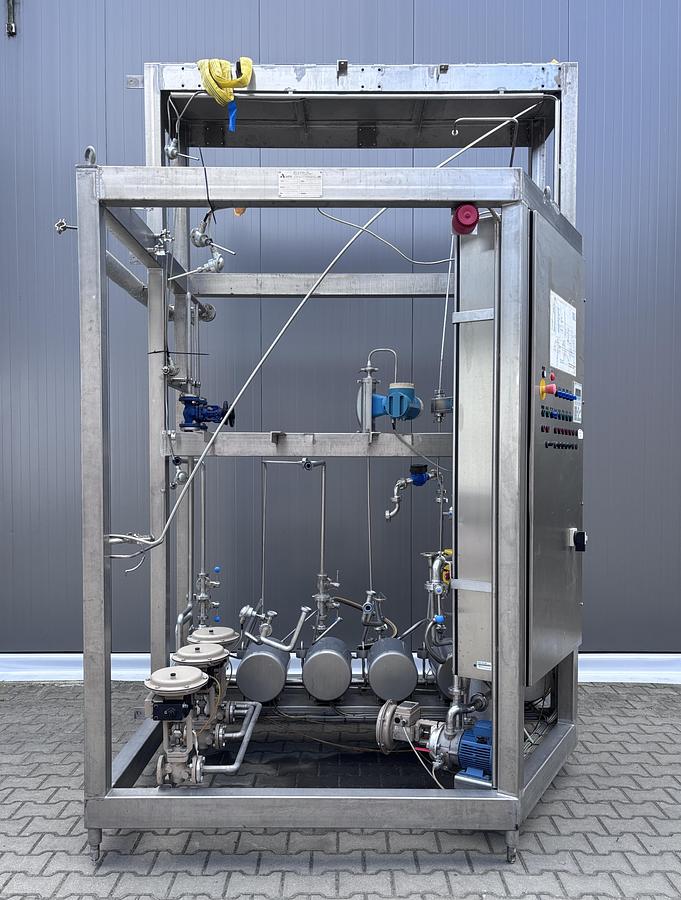

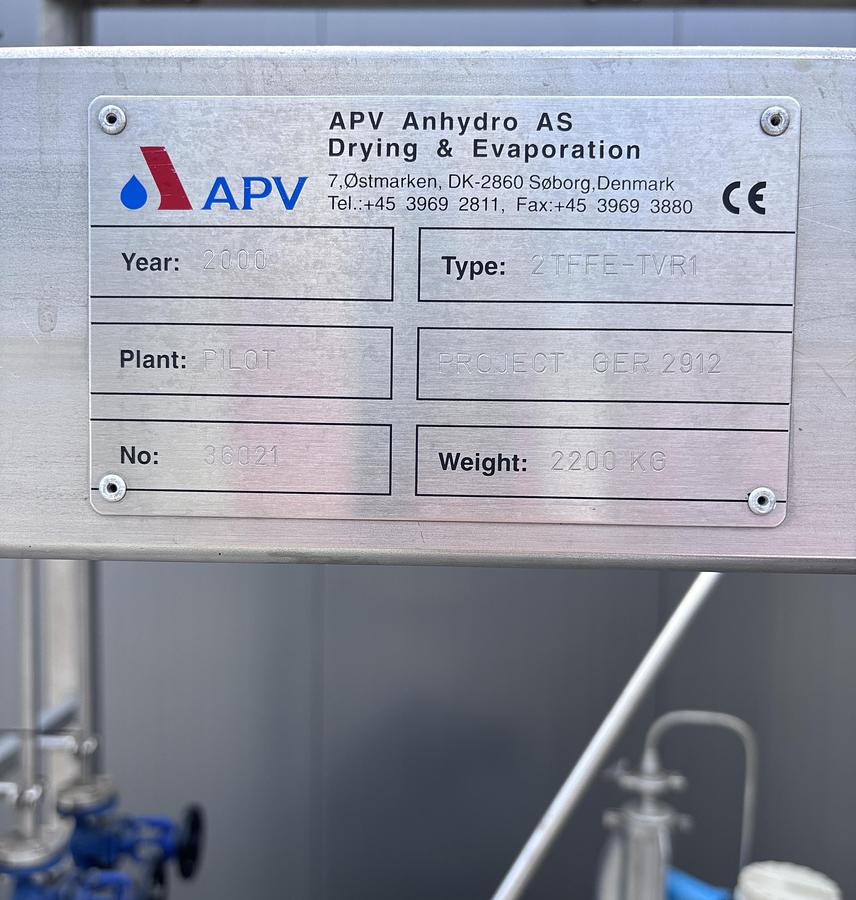

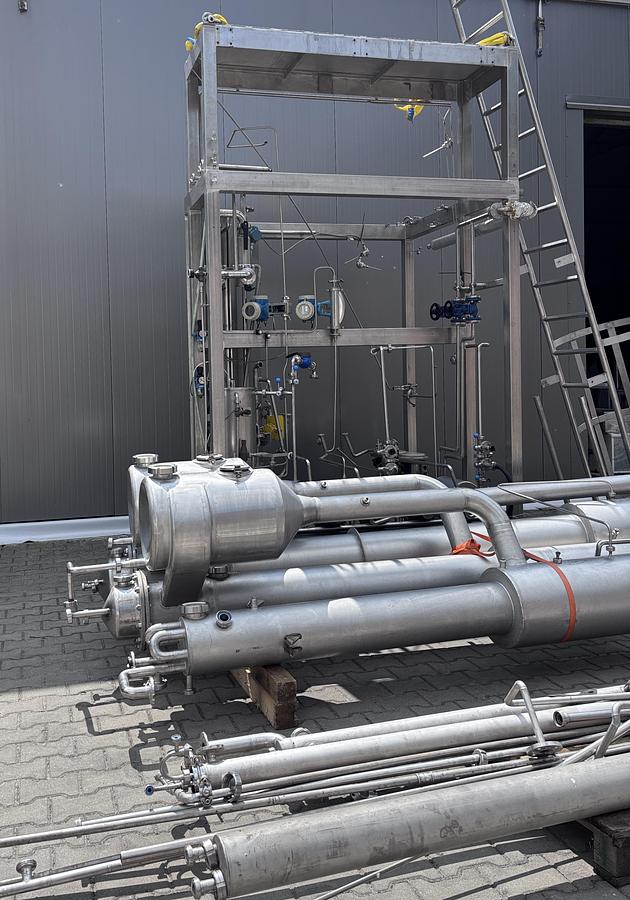

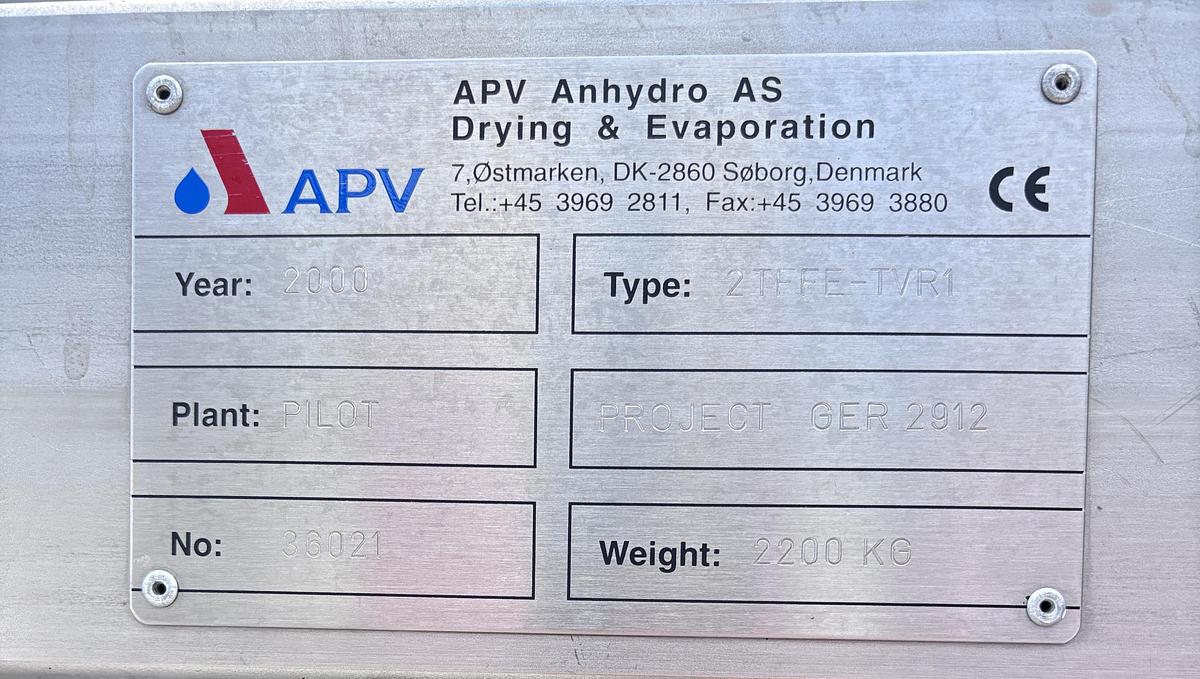

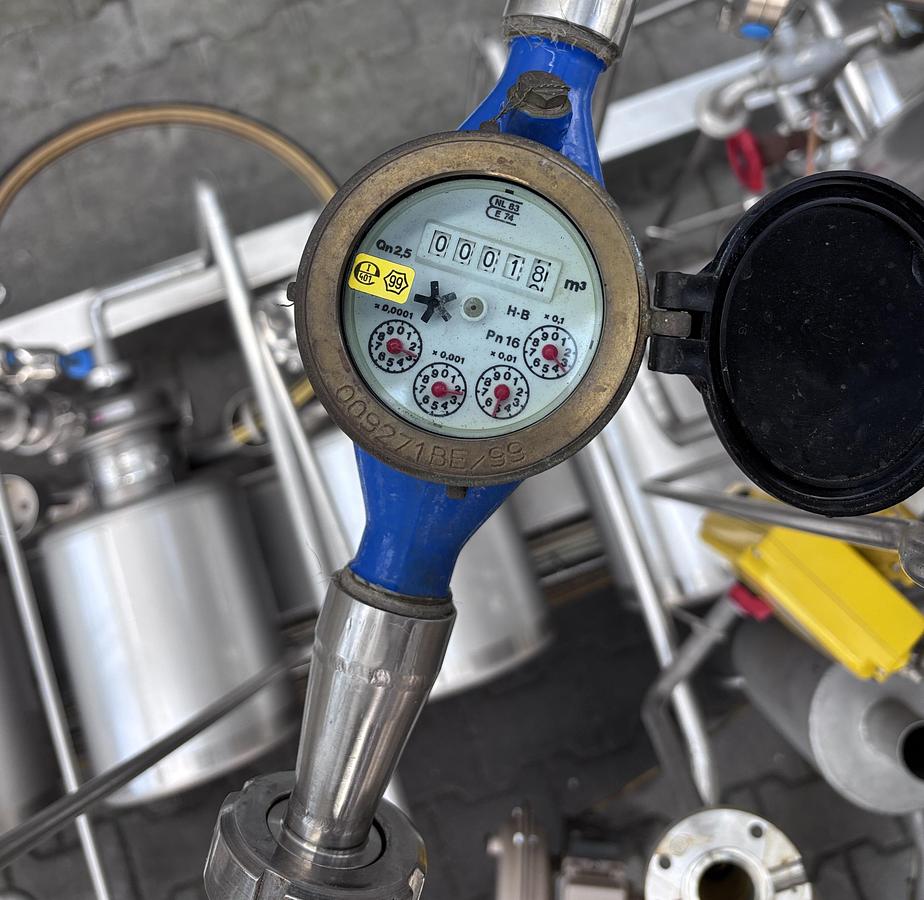

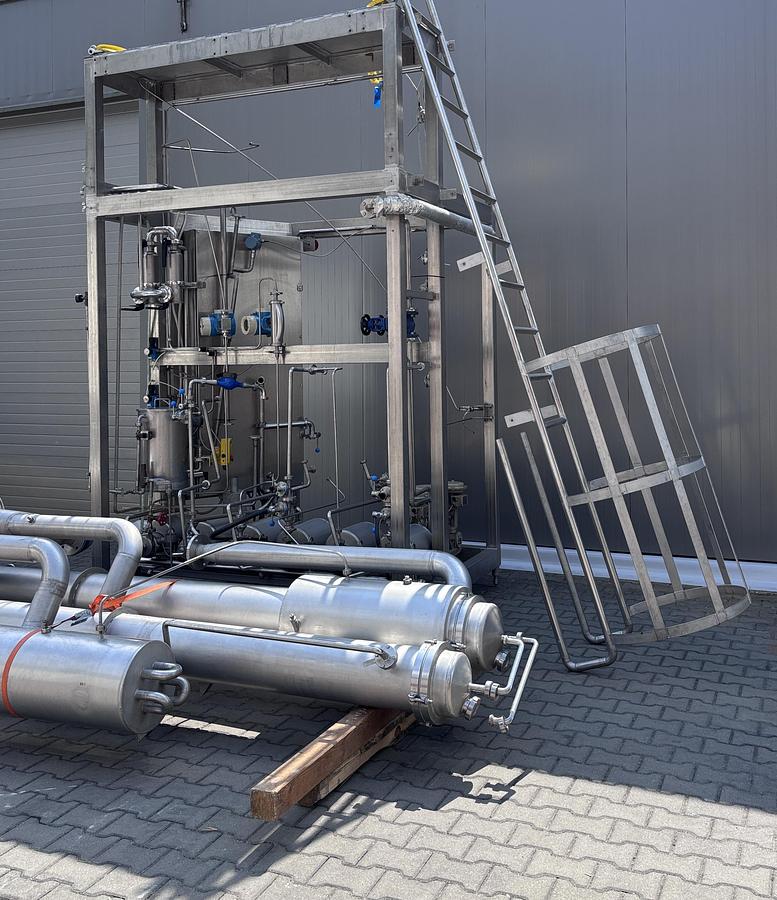

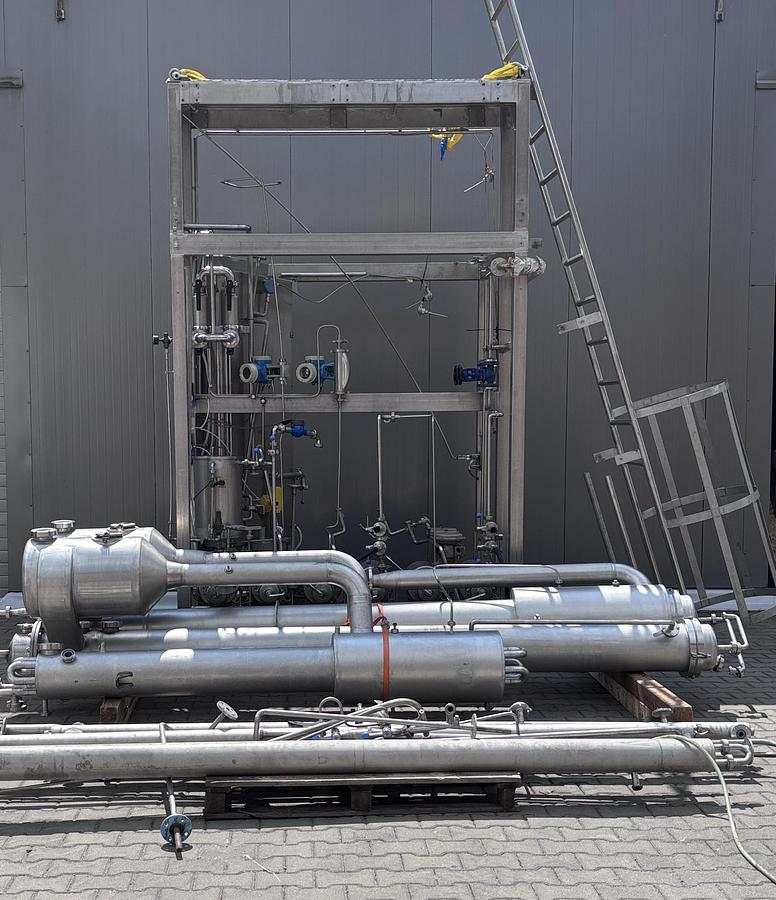

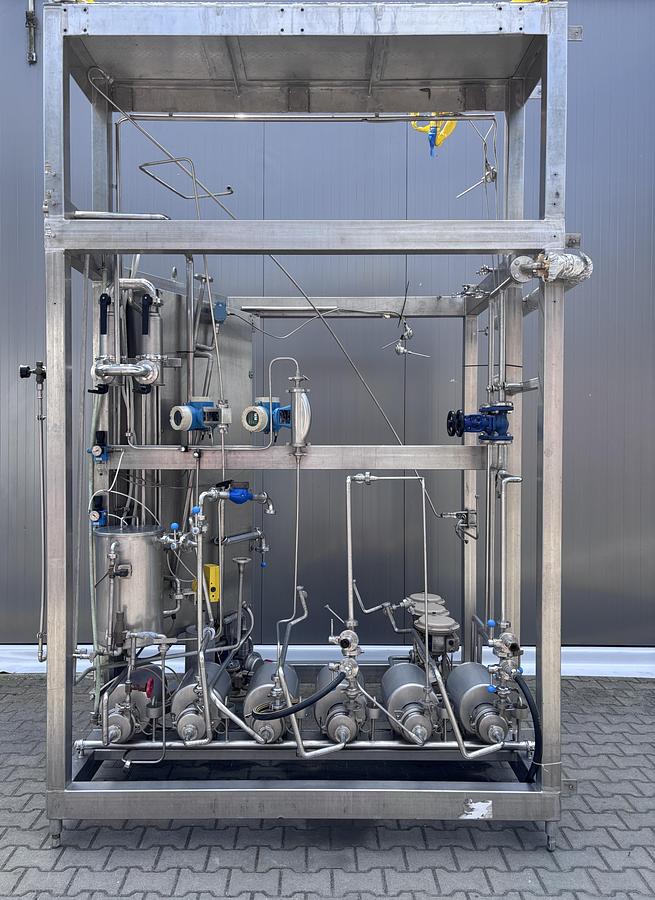

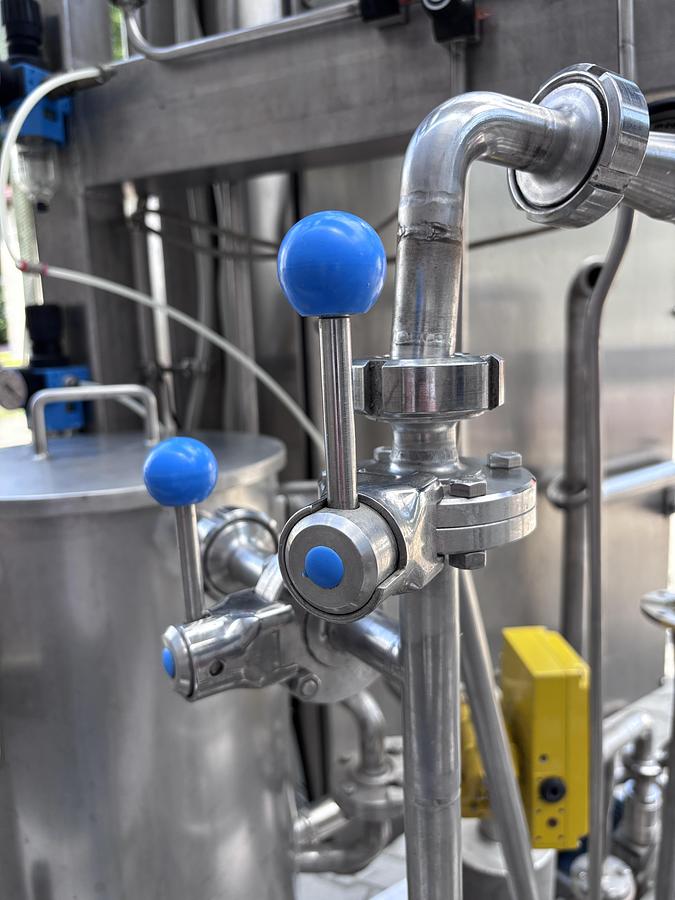

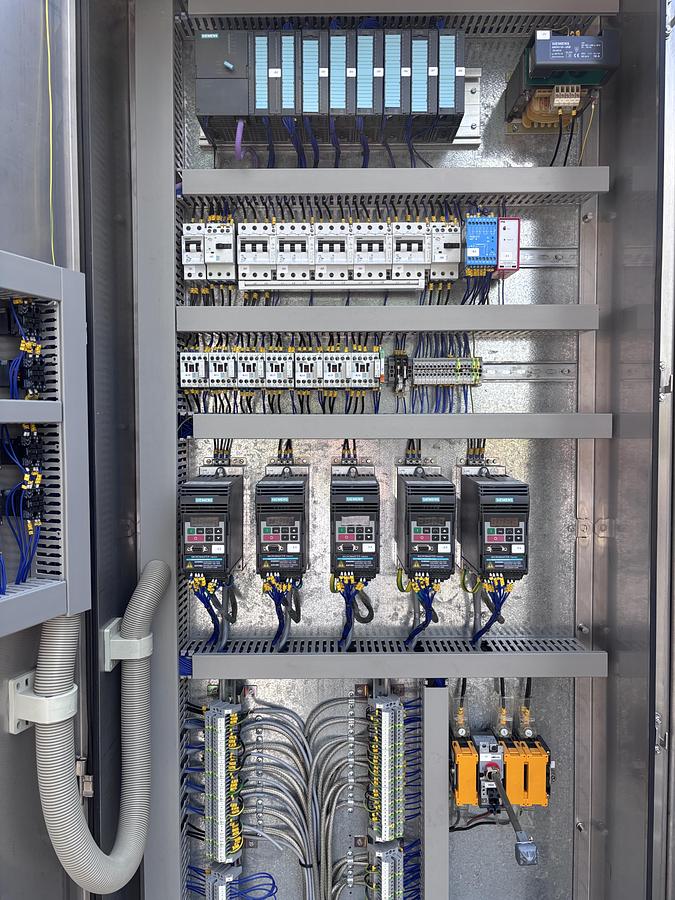

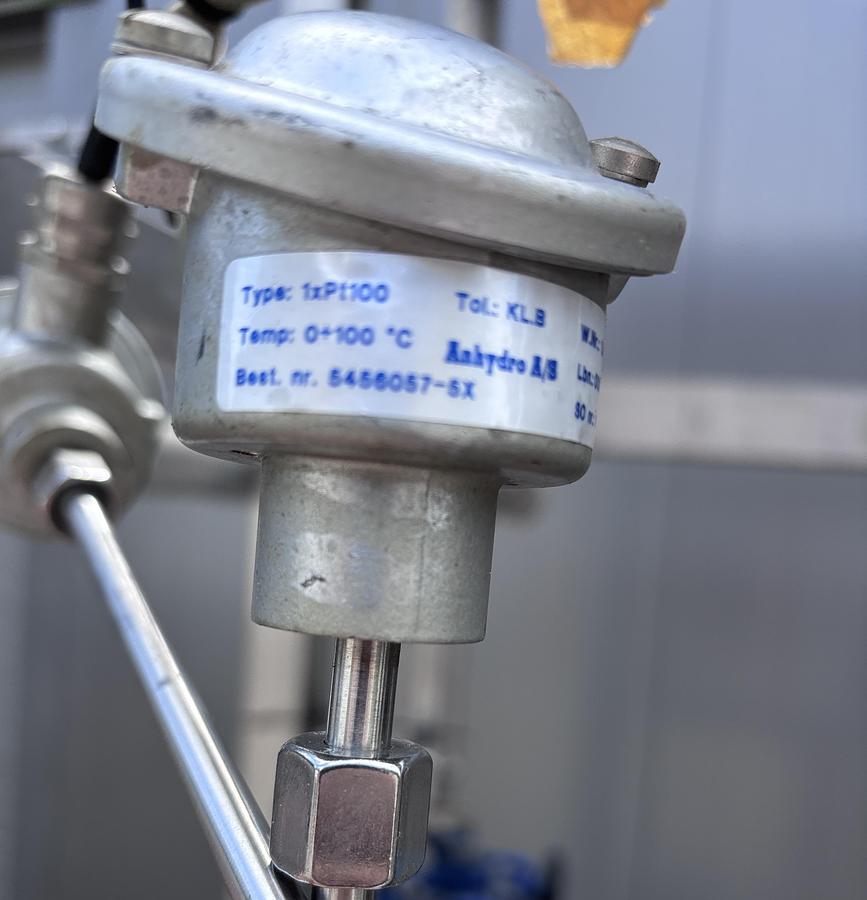

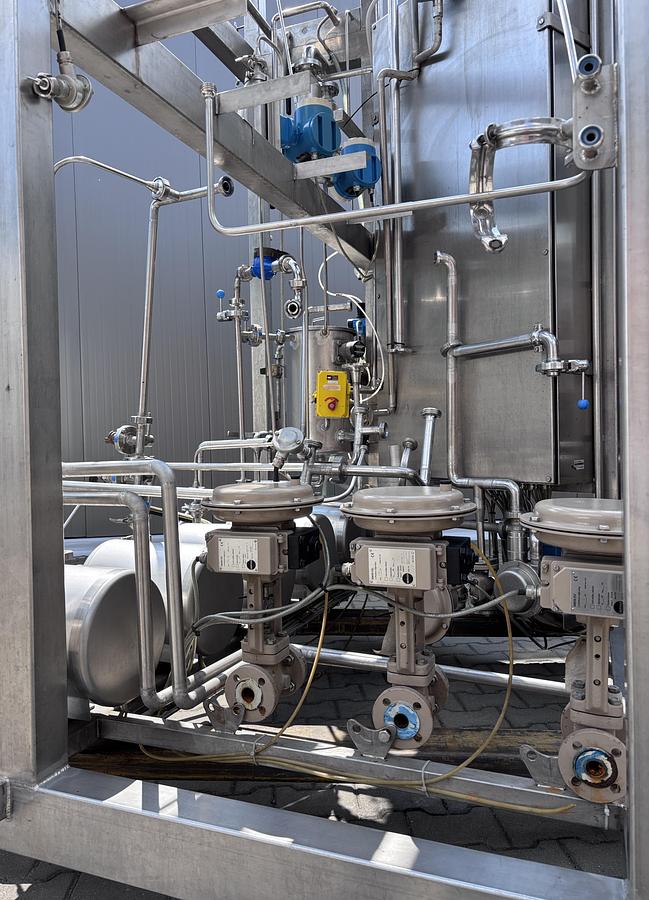

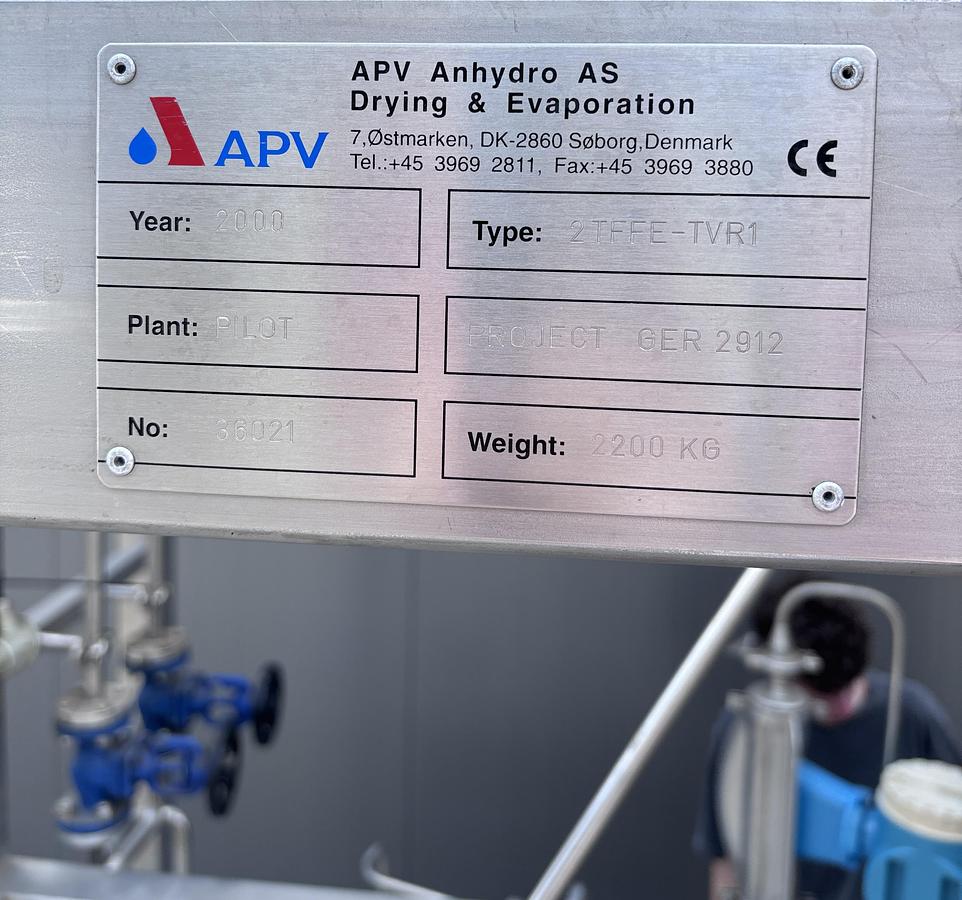

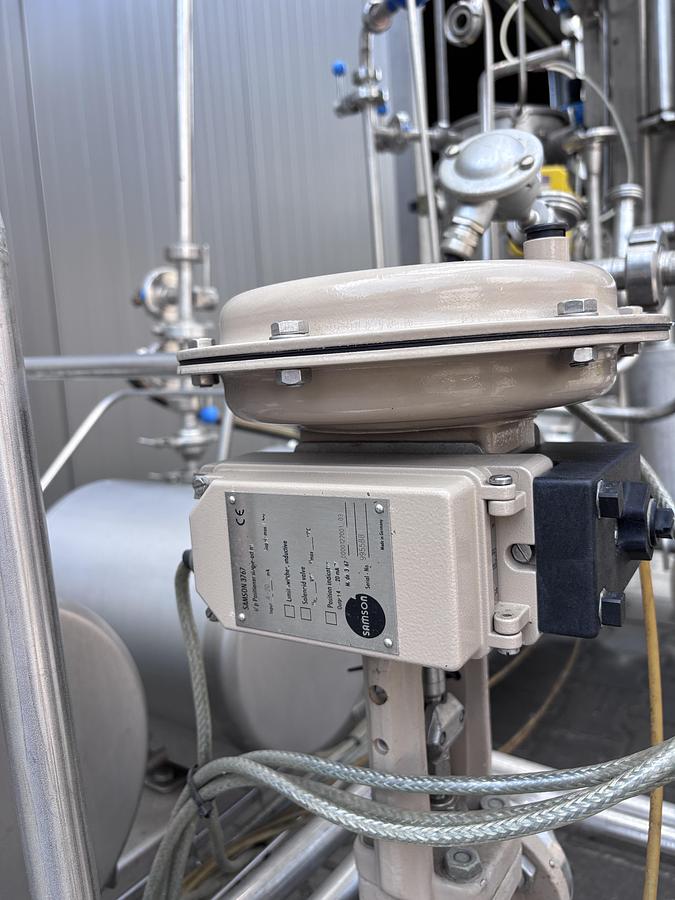

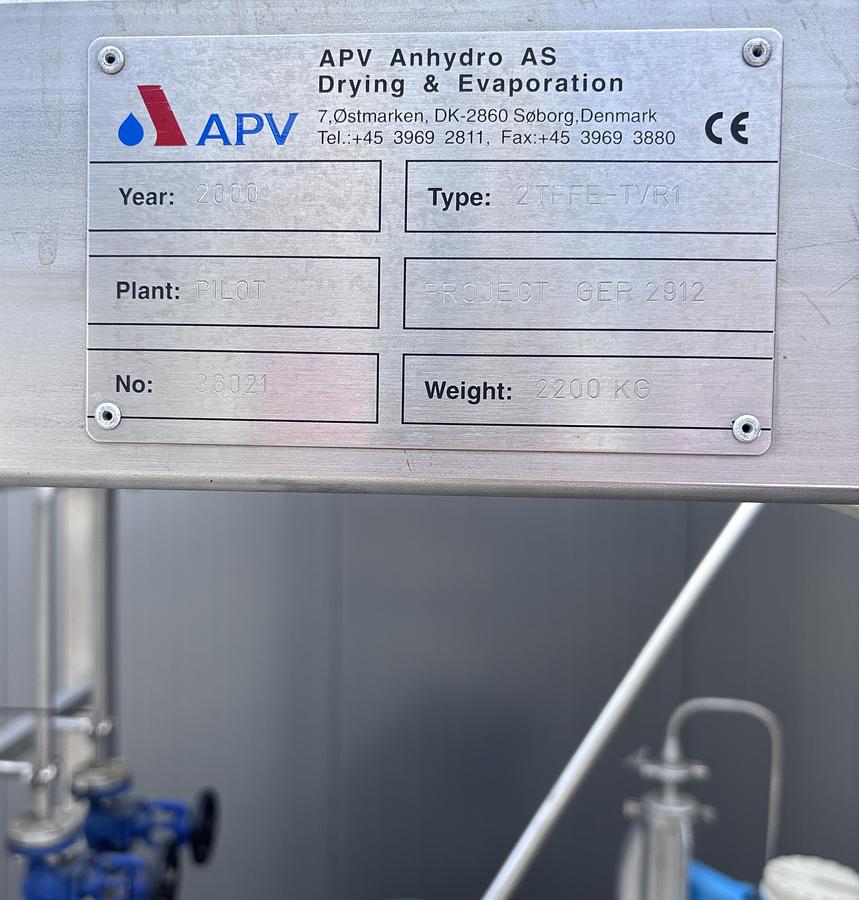

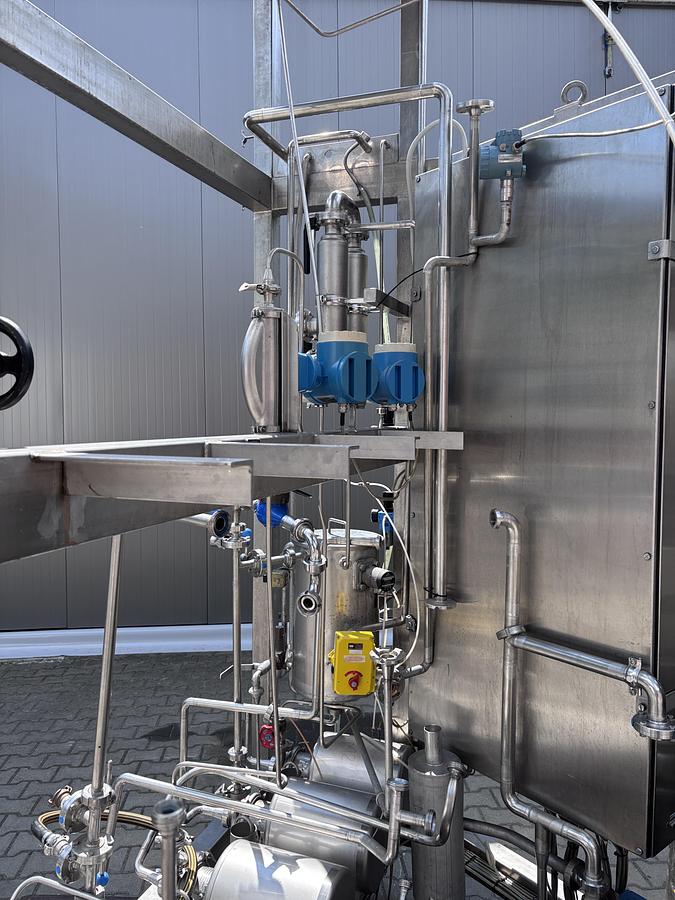

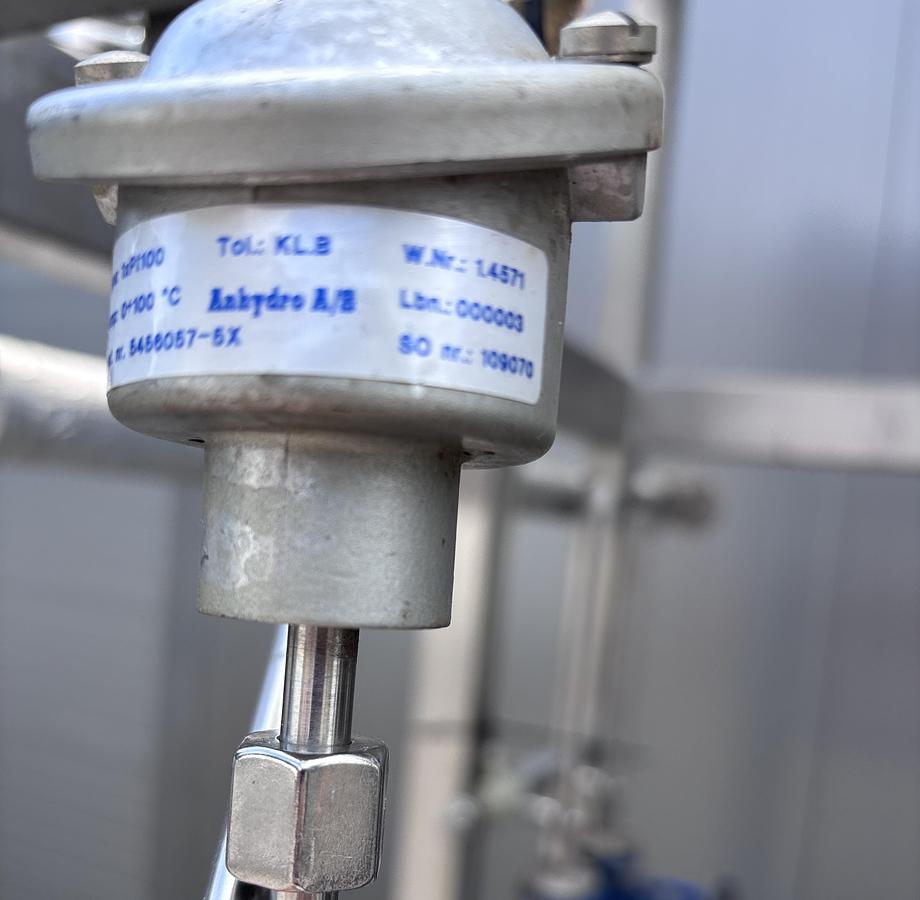

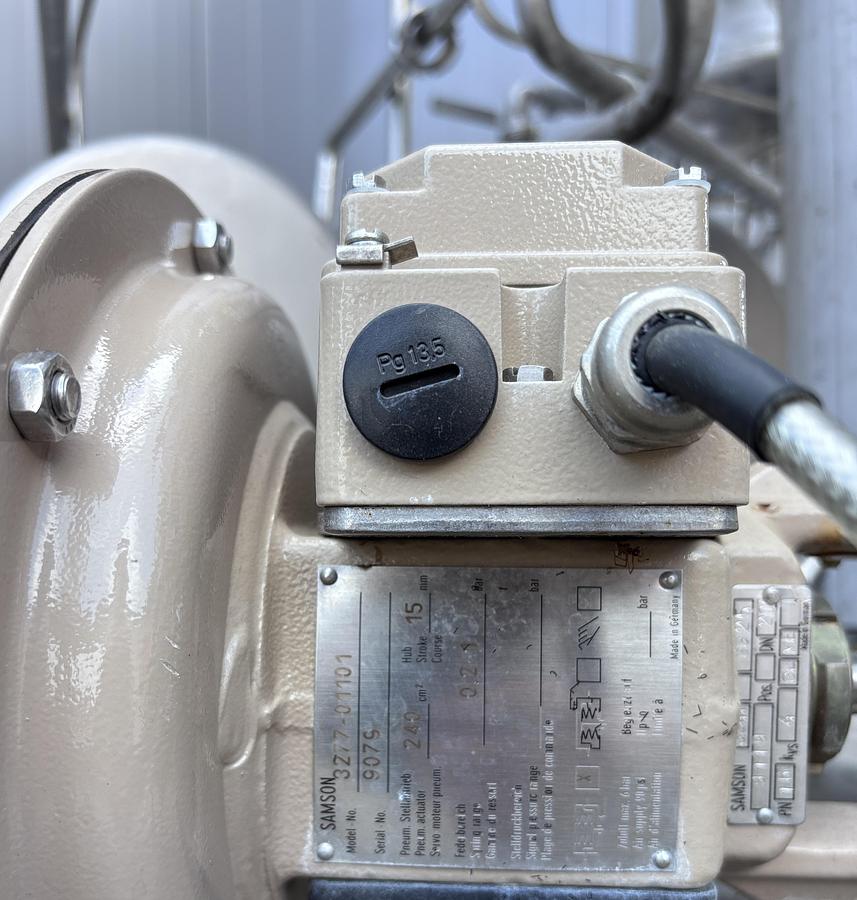

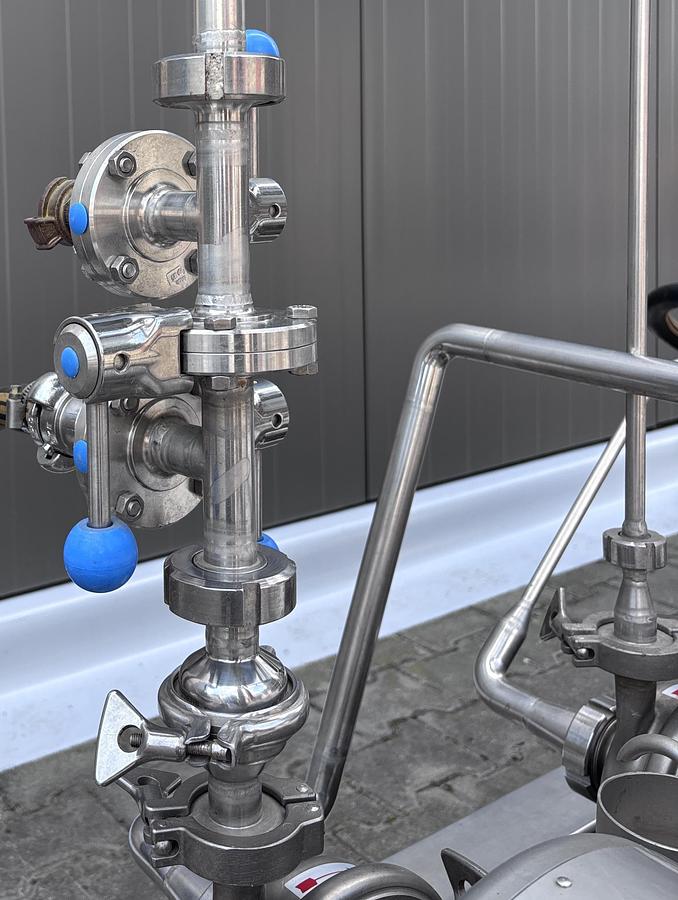

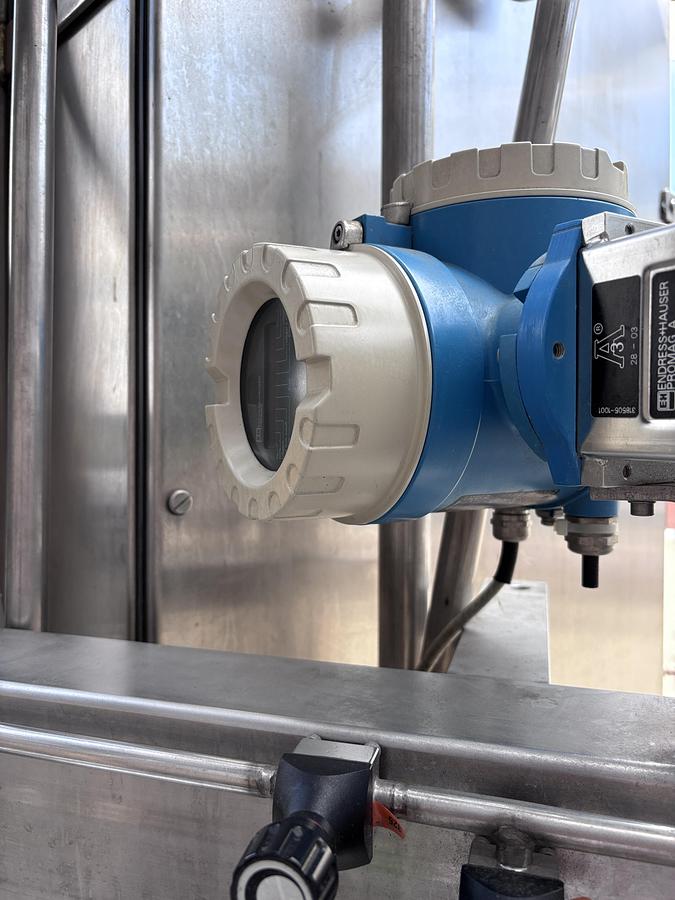

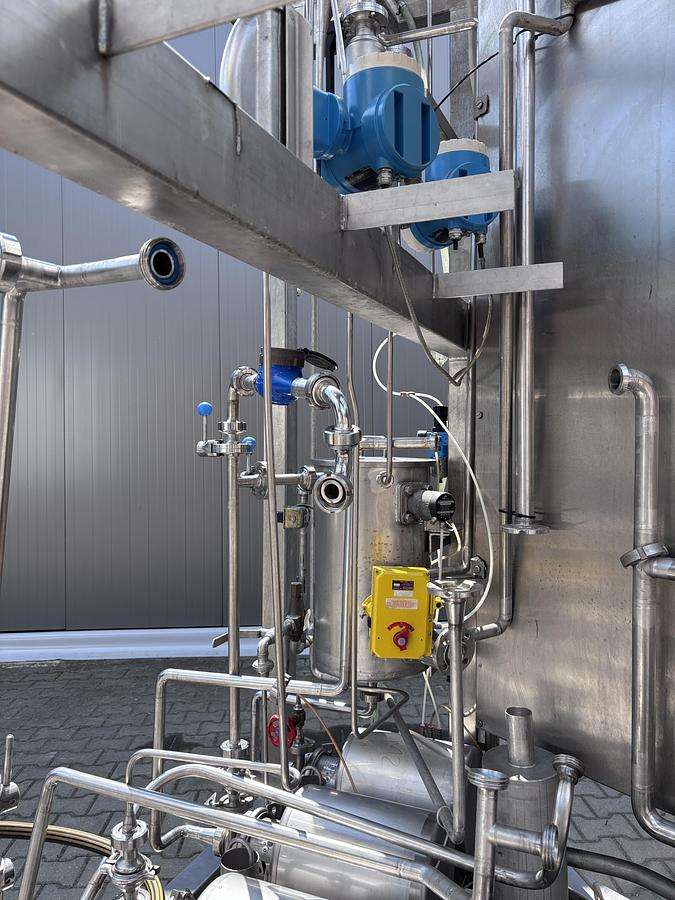

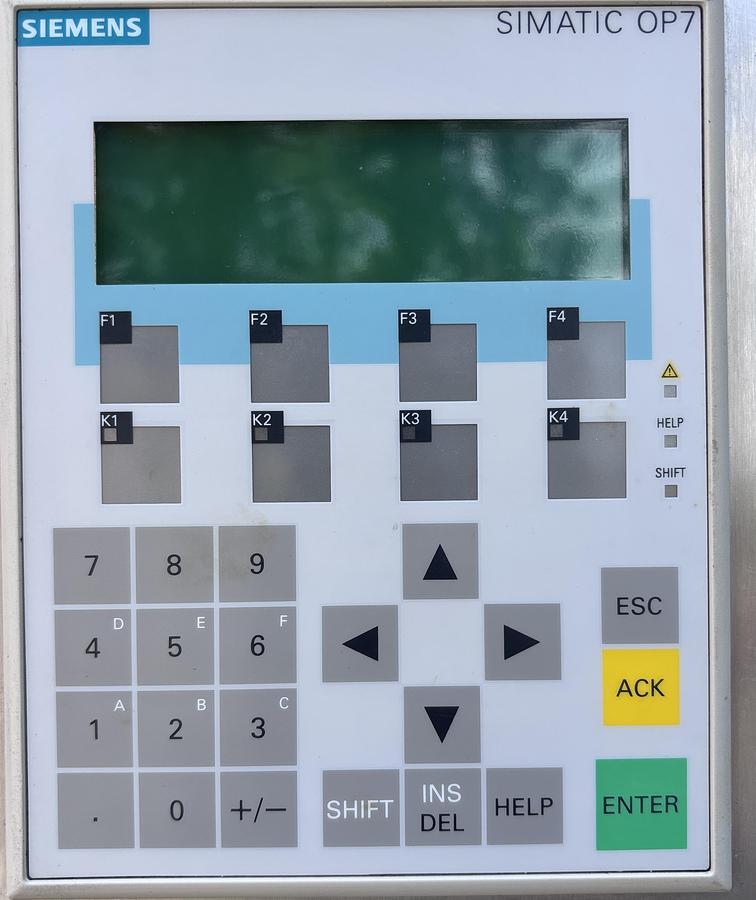

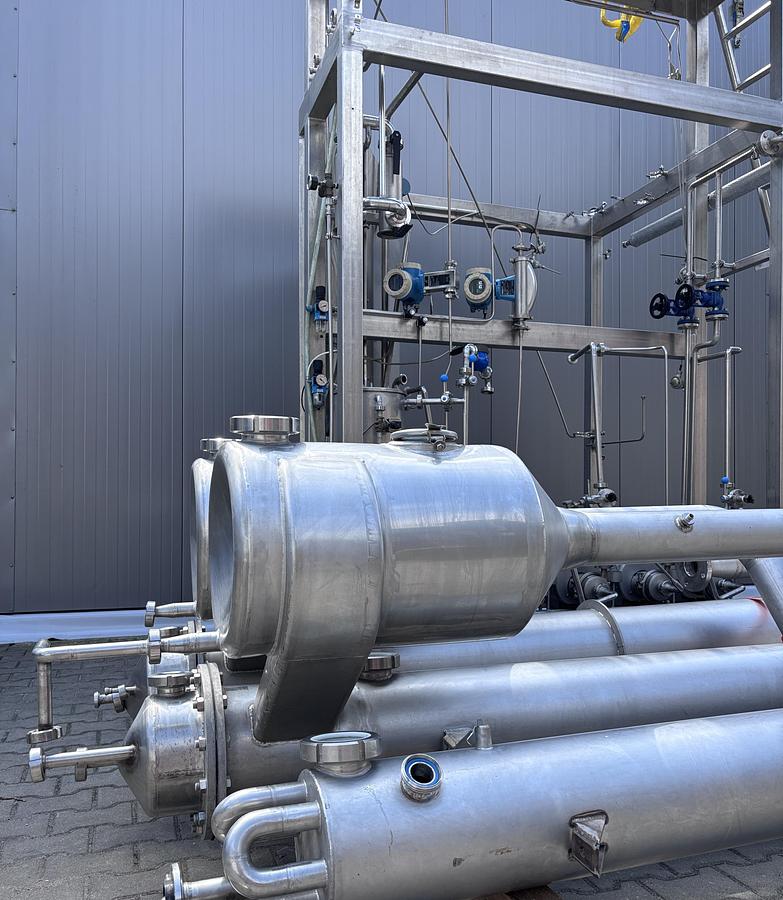

APV Anhydro 2FFTE TVR1 , Falling film evaporator

The evaporator is designed for evaporating specialized products and is equipped with thermo-compressor and all pumps for product, concentrate and

condensate. All parts of the system that come into contact with the product are made of stainless steel 1.4301. The plant is operated with a tubular pre-

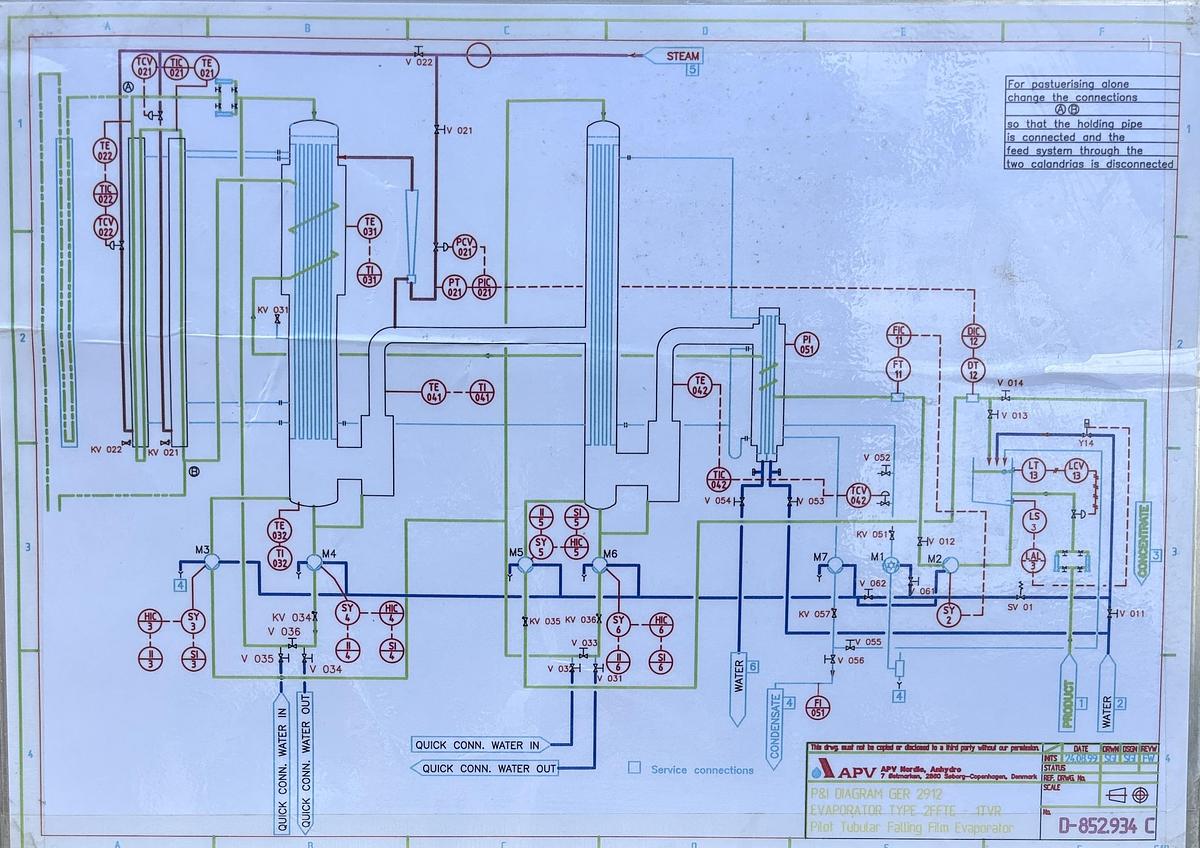

evaporator for heating the product using steam. From the preheater the product is sent to the 1st stage, where concentration begins. The partially

concentrated product is taken from the bottom of the 1st stage and from here it is passed through the 2nd stage heating unit where the final concentration

takes place. The vapor is condensed where the 2nd stage functions as a 1st stage condenser. The vapor from the 2nd stage is condensed in a surface

condenser using cooling water. The condensate is taken out from the 2nd stage. The vacuum in the system is established by an effective water ring pump

connected to the condenser. The system is designed to be CIP cleaned by circulating detergents and water. The heating unit is designed in such a way that the

pipes are easily accessible. Technical data: Amount of food kg/h 350 Dry substance in food % 2-3 Water evaporation kg/h 315 Amount of concentrate kg/h 35

Dry substance in concentrate % 25-30 Boiling temperature, level 1 °C 55 Boiling temperature, level 2 °C 48 Jacket temperature. Level 1 °C 62 Concentrate

temperature °C 48 Consumption data: Steam kg/H 130 Power requirement, pumps kW 12 Cooling water, circulation m3/H 5 Lye for cleaning, 100% kg 10 Acid

for cleaning, 100% kg 10 Process water for pumps m3/h 1 Feed water temperature °C 10 Steam pressure at the system (above) bar 8 Cooling water inlet

temperature °C 30 Cooling water outlet temperature °C 42 Power supply V/Hz 3x380/50 Sealing water temperature should be max. 20 degrees.

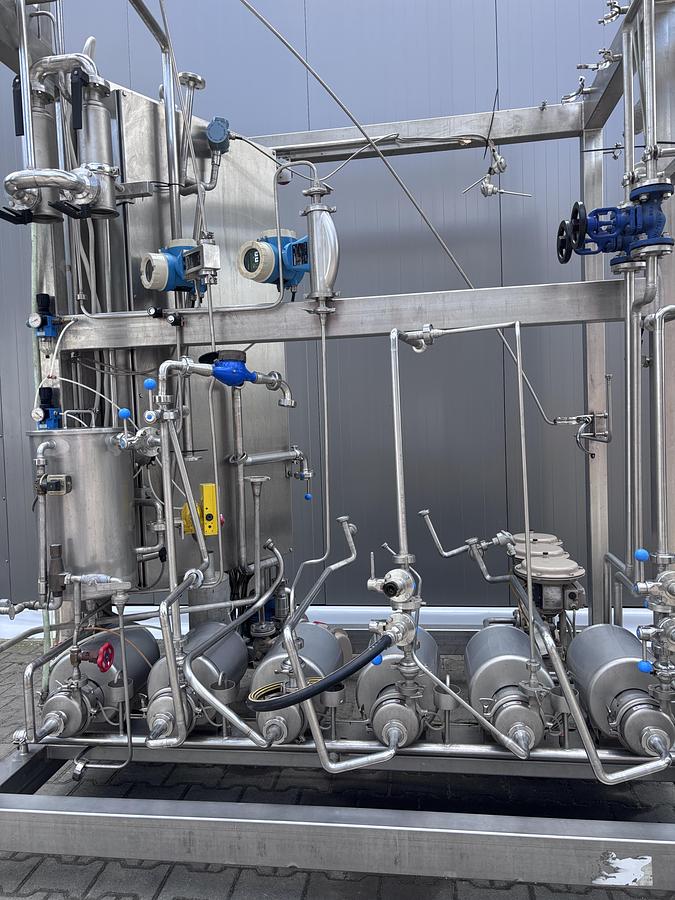

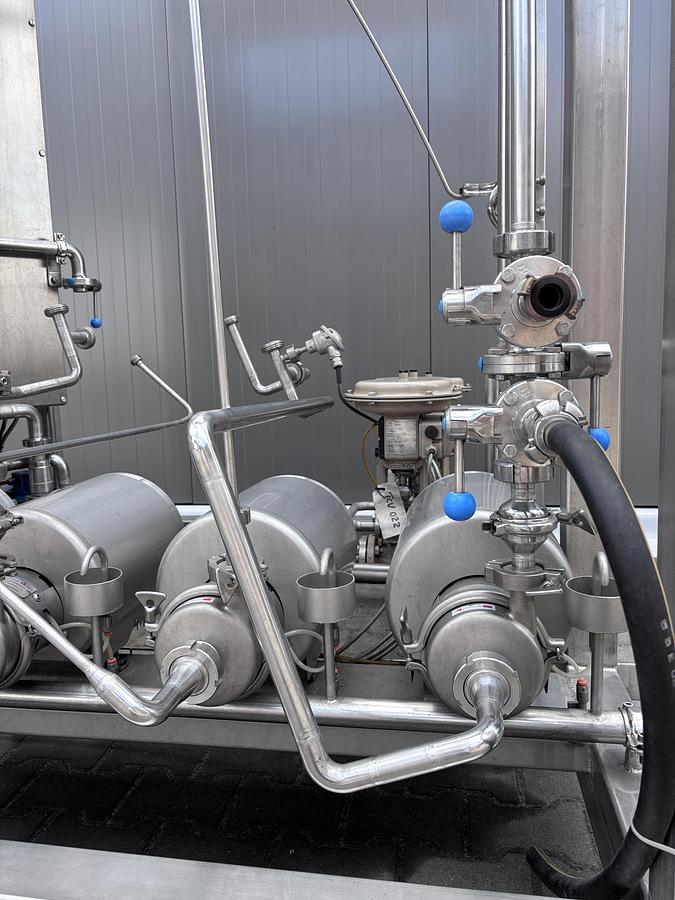

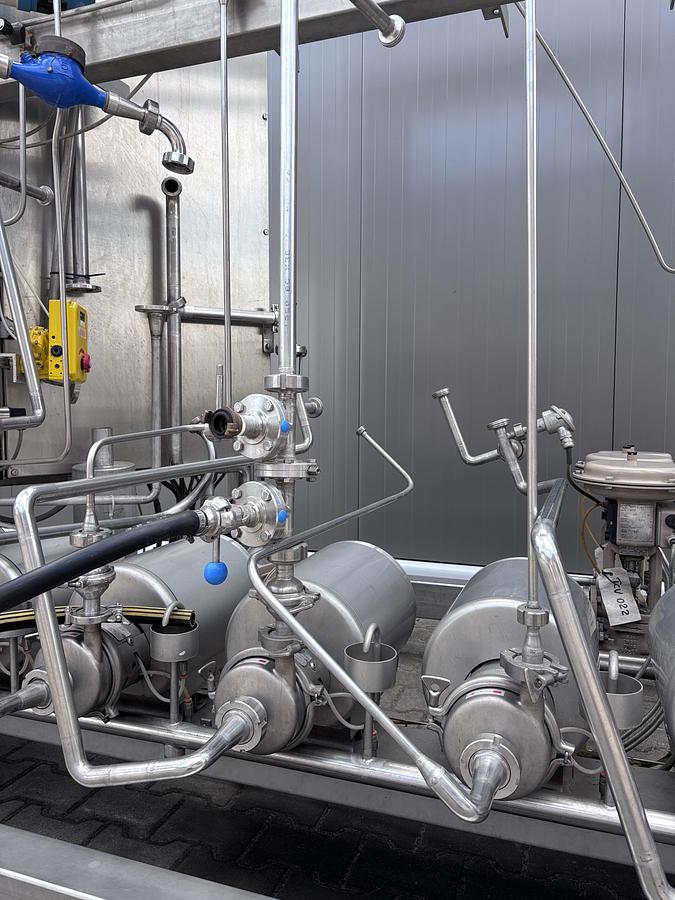

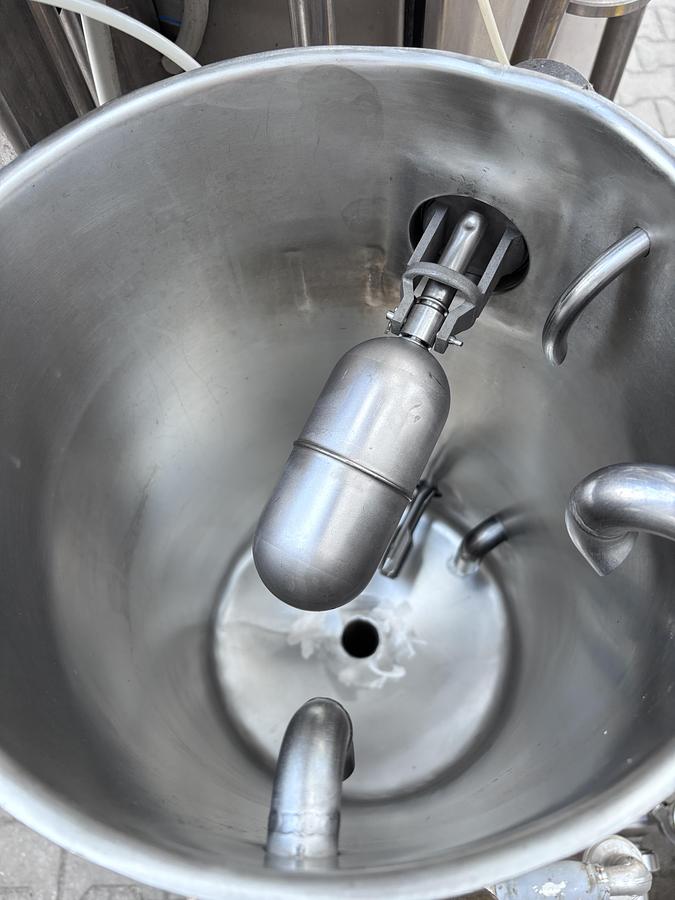

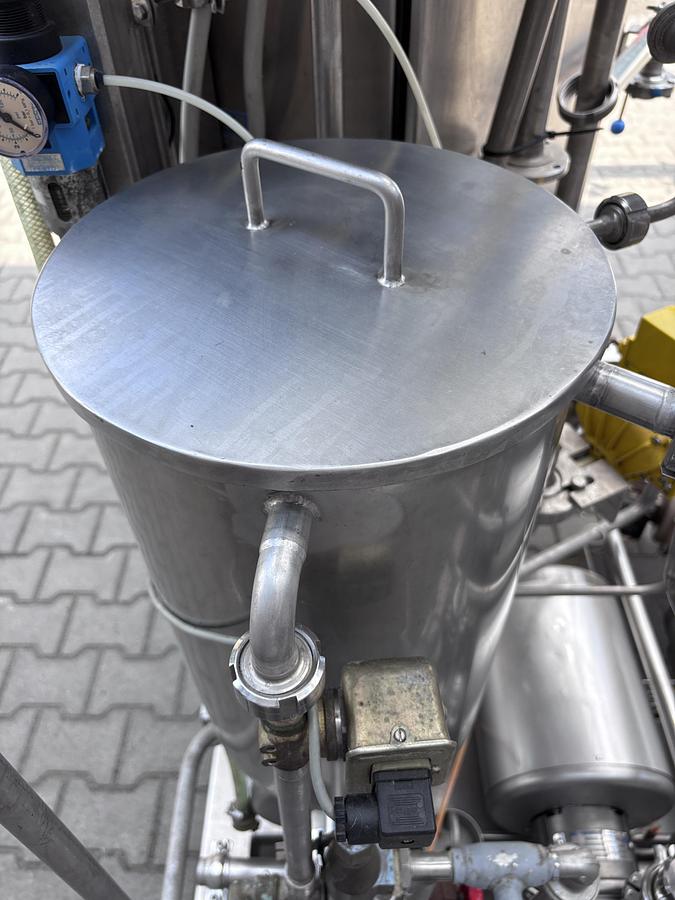

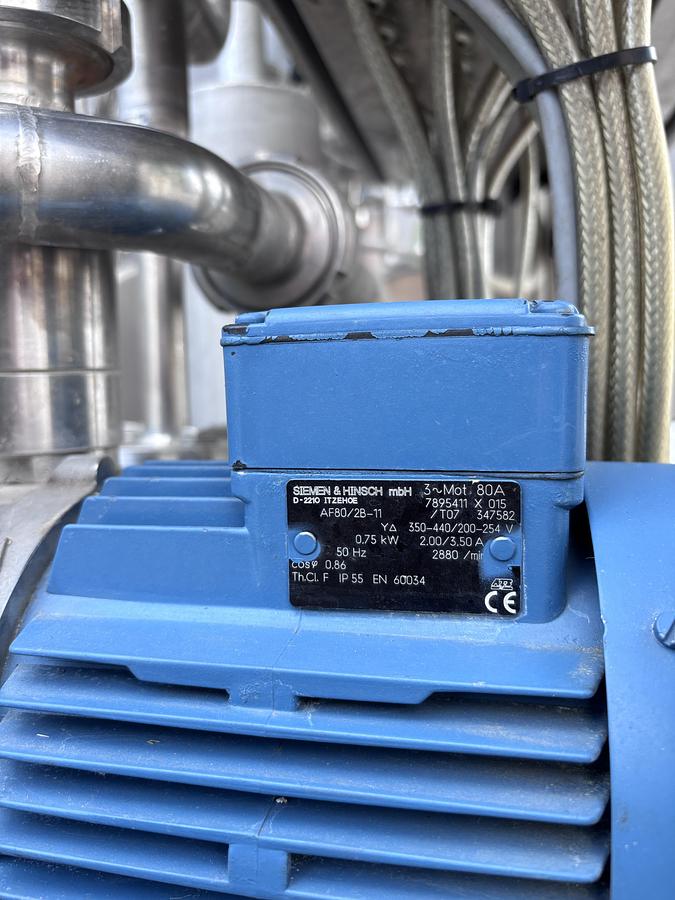

Standard equipment: 1. Feeding system 2. Feeding tank of approx. 100 l 3. Water tank of approx. 50 l 4. Feeding pump 5. Preheating and heat treatment

system 6. Plate heat exchanger 7. Degree tube heat exchanger 8. Radiator system 9. Radiator pipe length 6m 10. Concentrate pump 11. Condensate pump 12.

Pump console 13. Vapor separator 14. Vapor channels 15. Heating system 16. Vapor compressor 17. Condenser system 18. Surface condenser 19. Vacuum

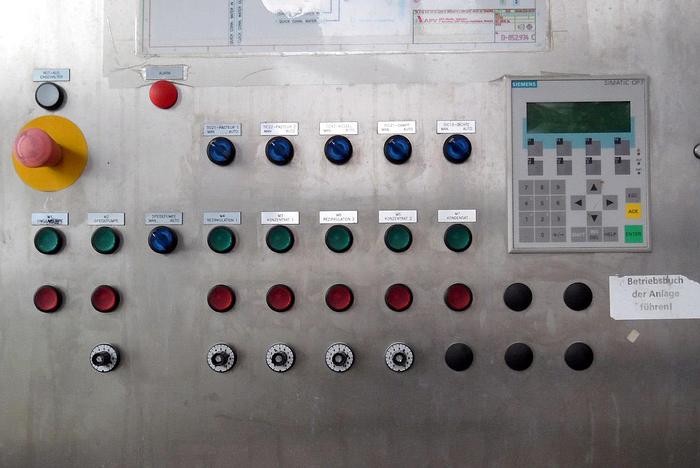

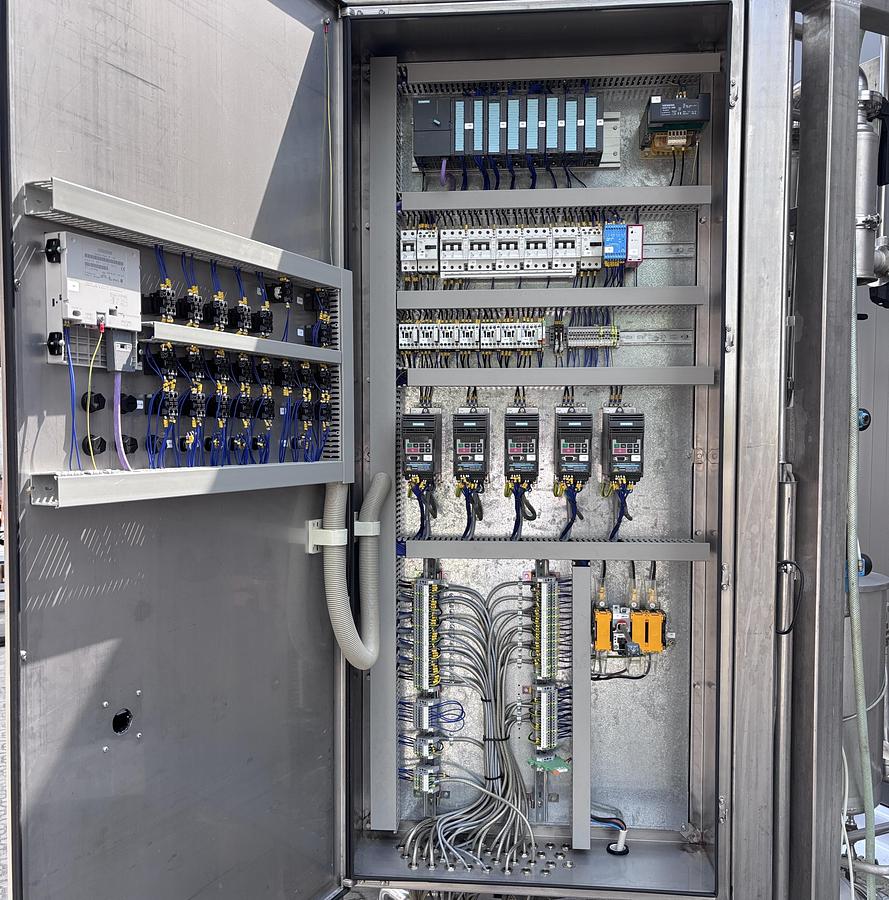

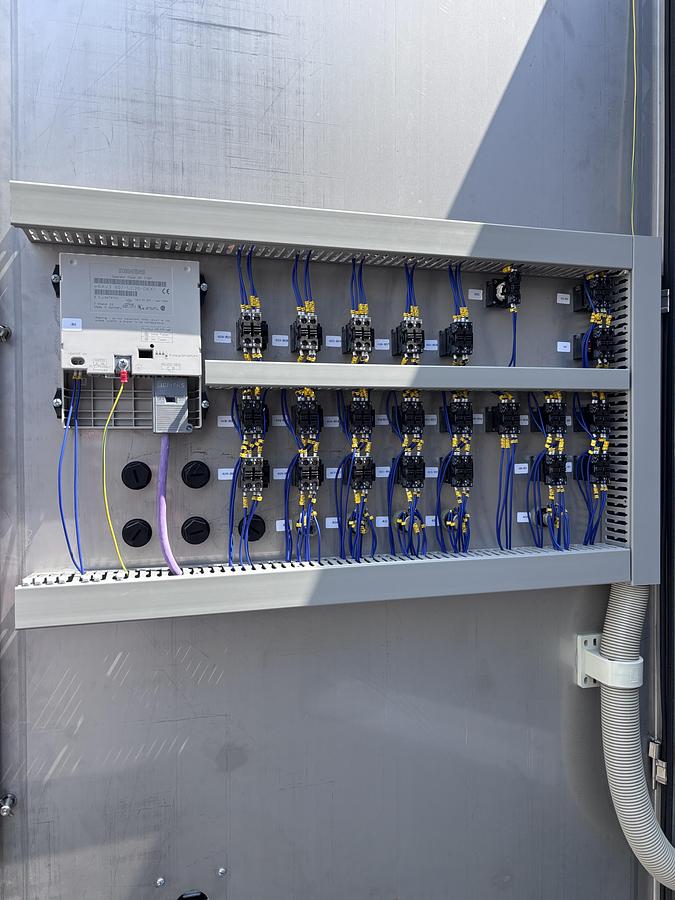

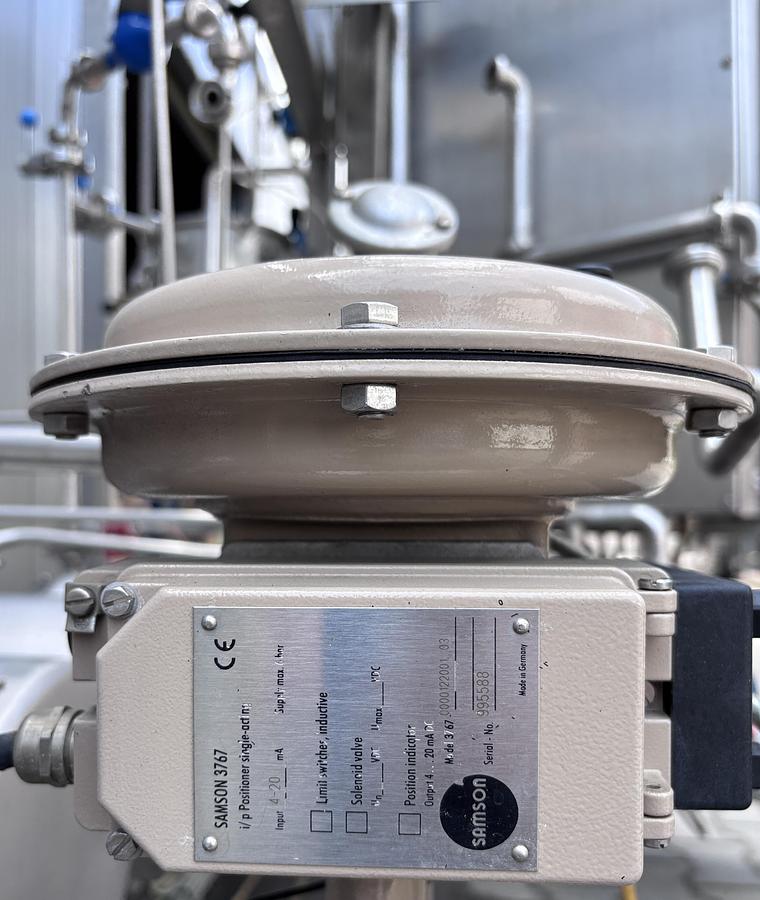

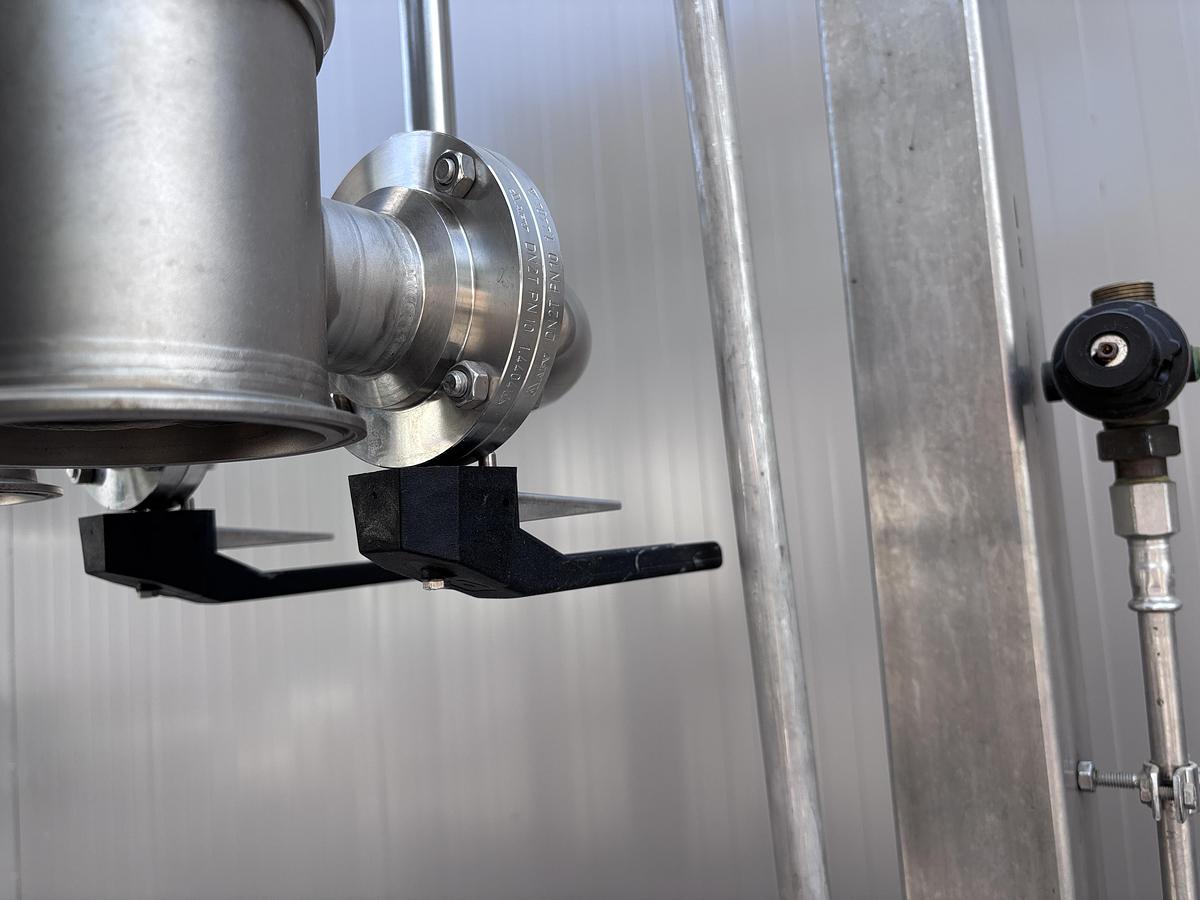

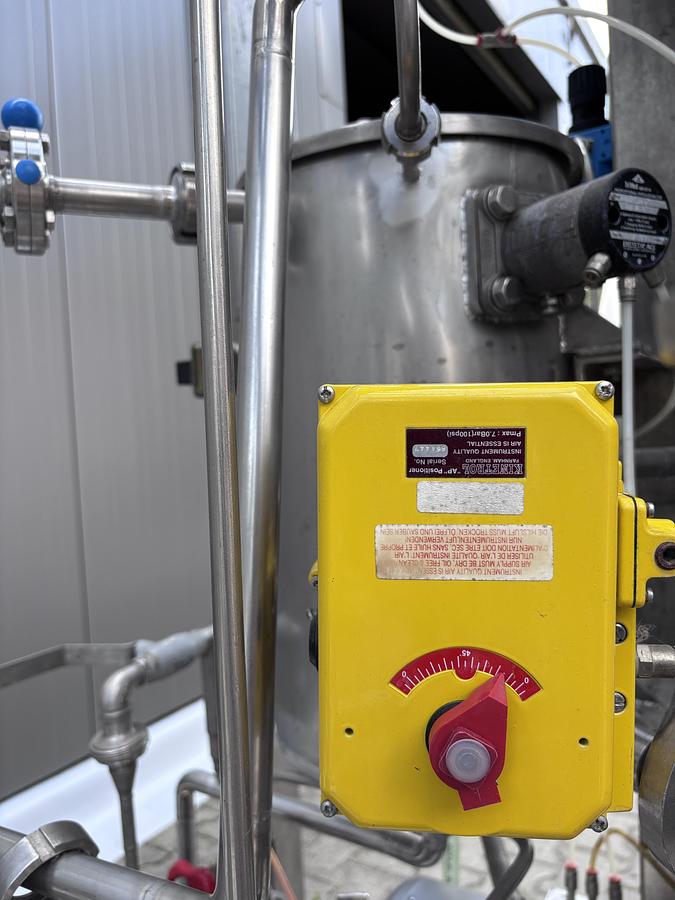

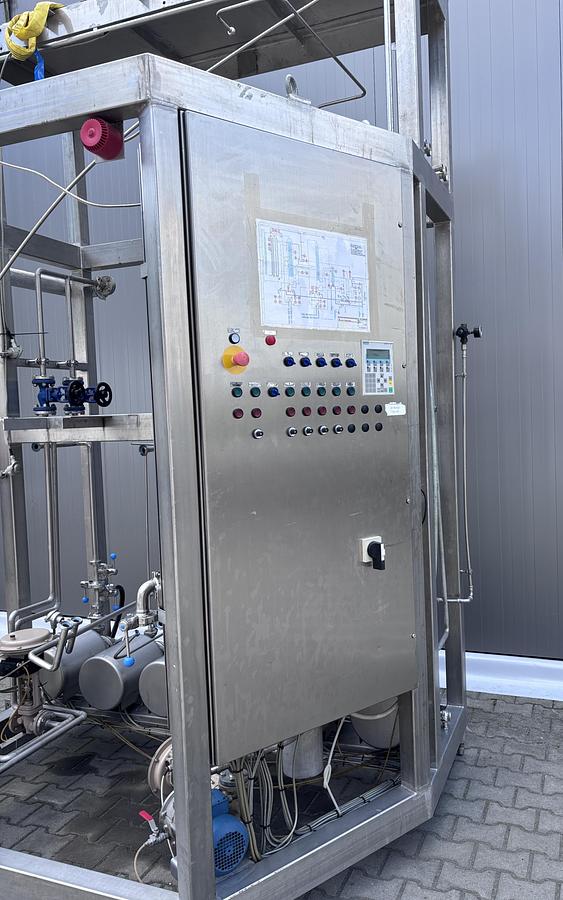

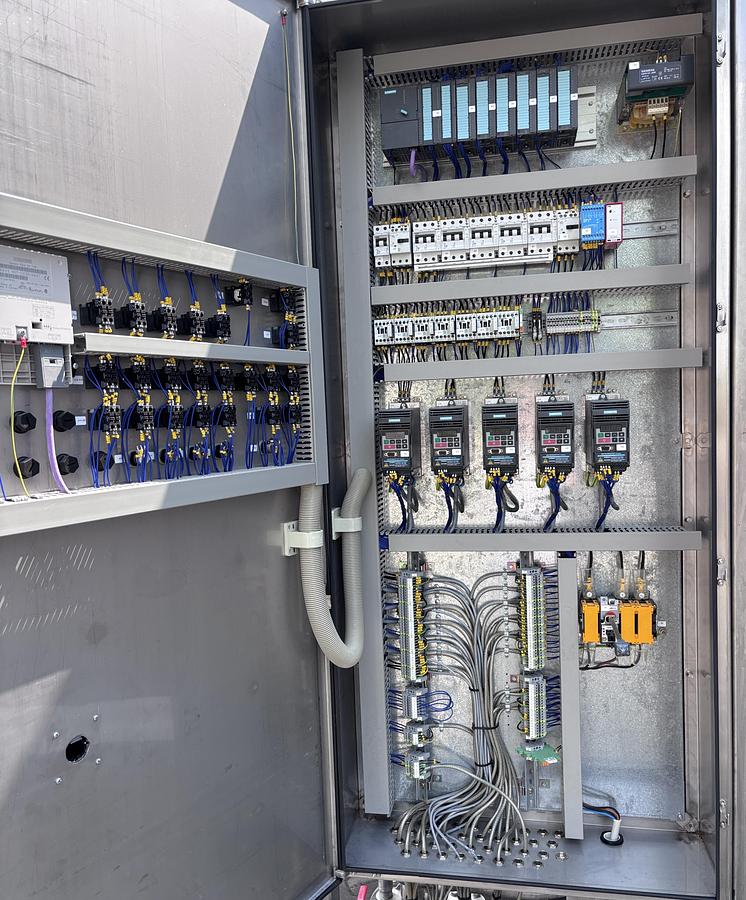

pump 20. Piping systems 21. Pipes, valves, coarse and fine fittings 22. Supporting structure 23. Process control 24. Automatic control circuits 25. Display

circles Dimensions and weight: Weight: 1800 kg Dimensions (length x width x height): 3.00 m x 2.20 m x 4.80 m Features: 1. System is not ready for operation

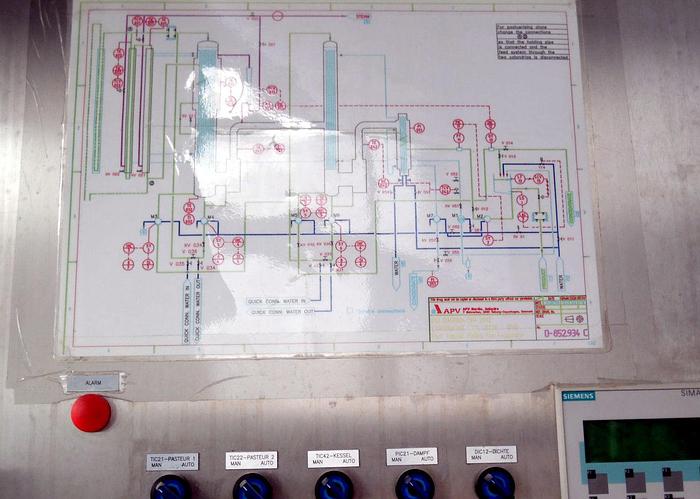

2. Electrical circuit diagrams and operating instructions are available 3. System dismantled

, not tested , sold AS IS ;

Packing and preparation for shipment available upon request.
