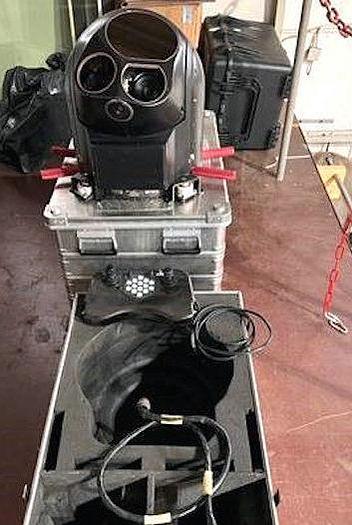

FLIR Ultra Force II , Thermal imaging camera

Year of Construction: 2004

Decommissioning: 2015

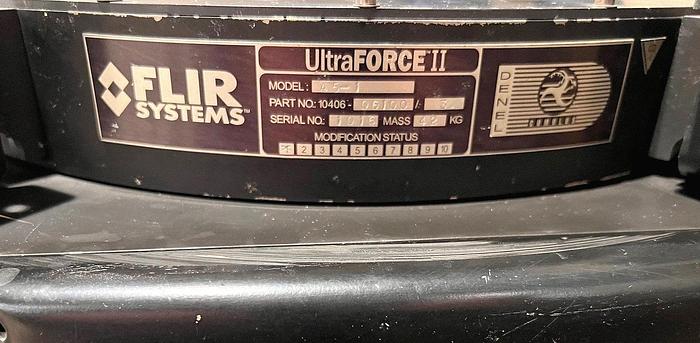

STU-Model: A5-1

P/N: 10406-06110/3

S/N: 1035

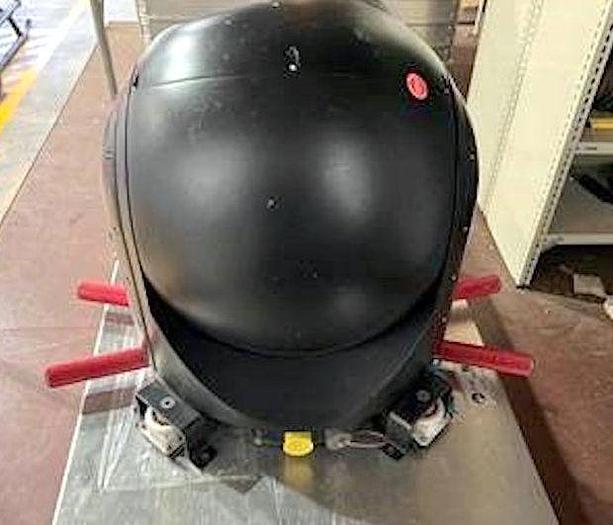

Turret type: Full4-axis gyrostabilised gimbal

Turret Dimensions: (height x diameter) approx. 490 x 410 mm

Turret Mass: approx. 40 kg

Az look angels: 360° Continuous

El look angels: + 20° to -105°

Stabilization: <13 μrad rms

Power: 280 W nominal, 400 W maximal

Operational air speed: 150 knots IAS

Transit air speed: 170 knots IAS

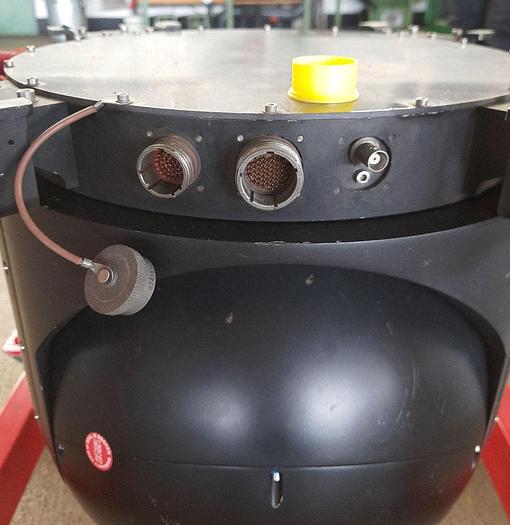

Interfaces: Standard RS-422/RS-232

Triple QWIP Thermal Imager and Video Camera Specification

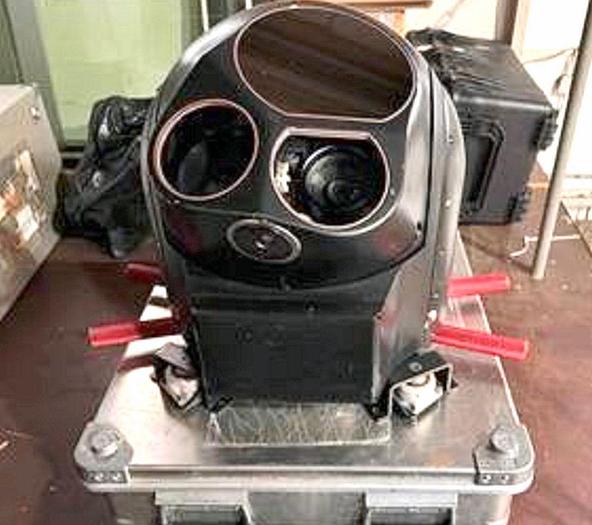

Infra-red Camera: European Triple QWIP with integral 3 FOV optics

Spectral band: 8 - 9 µm

Detector: Focal plane array (QWIP) GaAs 320 (H) x 240 (V)

Fields of View:

Wide 25° (H) x 19° (V)

Medium 6° (H) x 4,8° (V)

Narrow 0,99° (H) x 0,74° (V)

Min. focus distance: 20 to 100 m

Zoom: 4 x Electronic Zoom

FOV Switching time: < 0,5 sec

Cooling: Sterling Integrated cooler

CCD TV Camera and Lens Combination Specifications

Manufacturer: Sony

Model: DXC-390P, 3-CCD Color

Pick-up device: 1/3 type IT (Interline Transfer) CCD

Effective picture elements: 752 (H) x 4,95 (V) mm

Sensing area: 6,00 (H) x 4,95 (V) mm

Scanning system: 2:1 interlaced, 625 lines

Horizontal frequency: 15,625 lines

Vertical frequency: 50 Hz

Phase control: H/SC phase control

Horizontal Resolution: 800 TV lines

Lens mount: C mount

Flange back: 17,526 mm in air

Sensitivity: F 8.0 at 200 lux

Minimum illumination: 4 lux (F2, GAIN:Hyper)

S/N ratio: 61 dB

Focal length: 9,5 to 256,5 mm F 3,5 - 512 mm F 7,0

Zoom ratio: Effective x 54 (x27 with x2 switchable Extender)

TV & Lens Combination

Fields of View:

0,54 deg. (H) x 0,40 deg. (V)

28,36 deg. (H) x 21,46 deg (V)

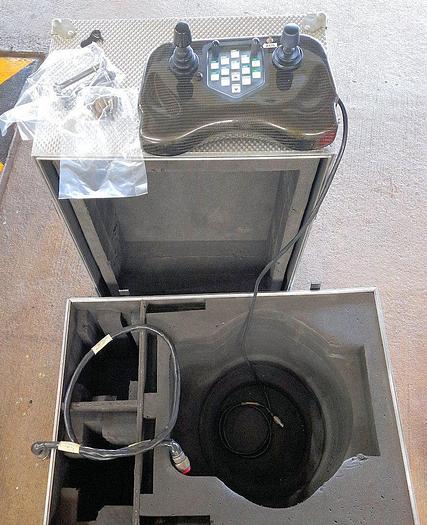

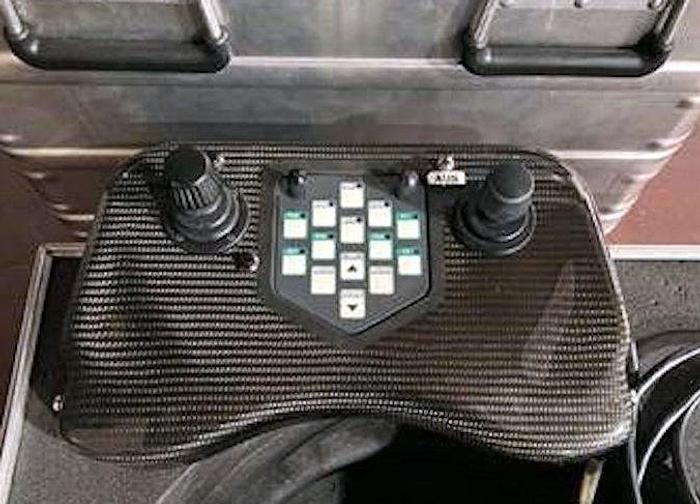

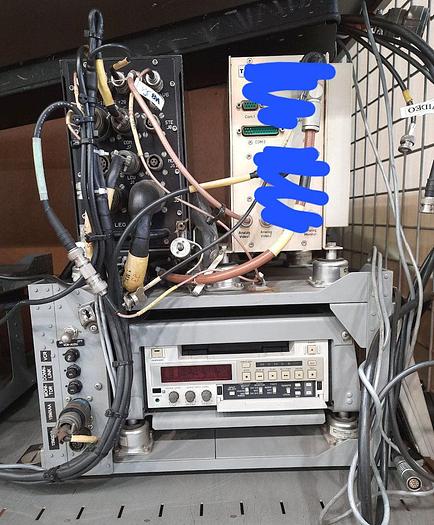

Including control unit, transport box, mounting rack and helicopter mount.

Not tested. sold AS IS ;

Packing and preparation for shipment available upon request.
